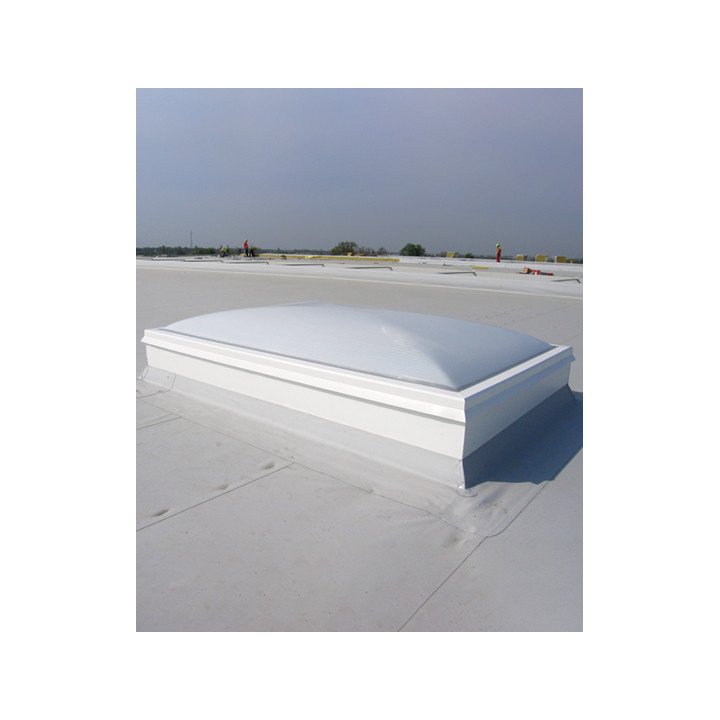

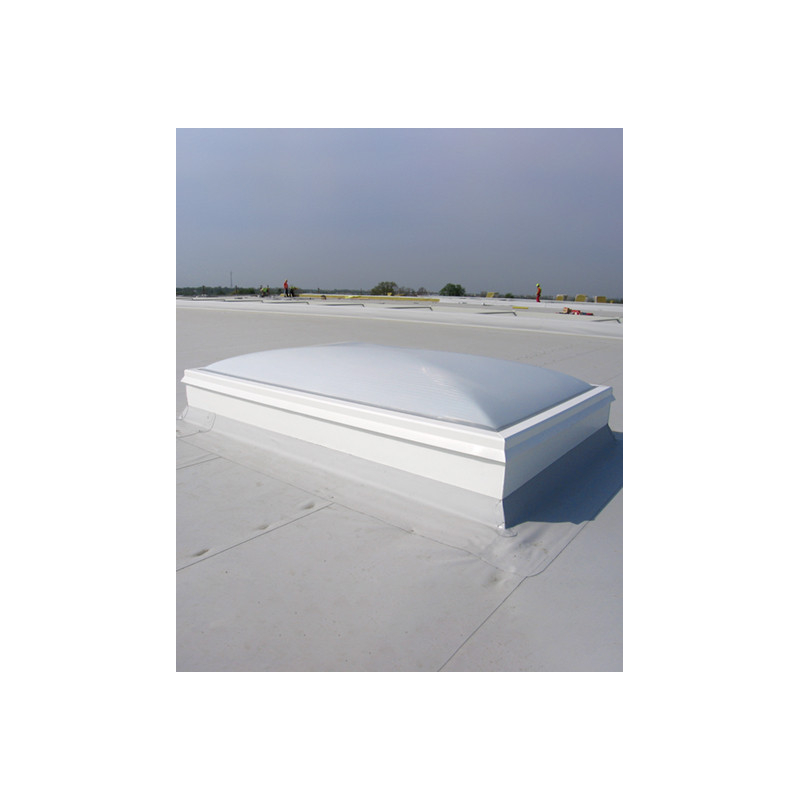

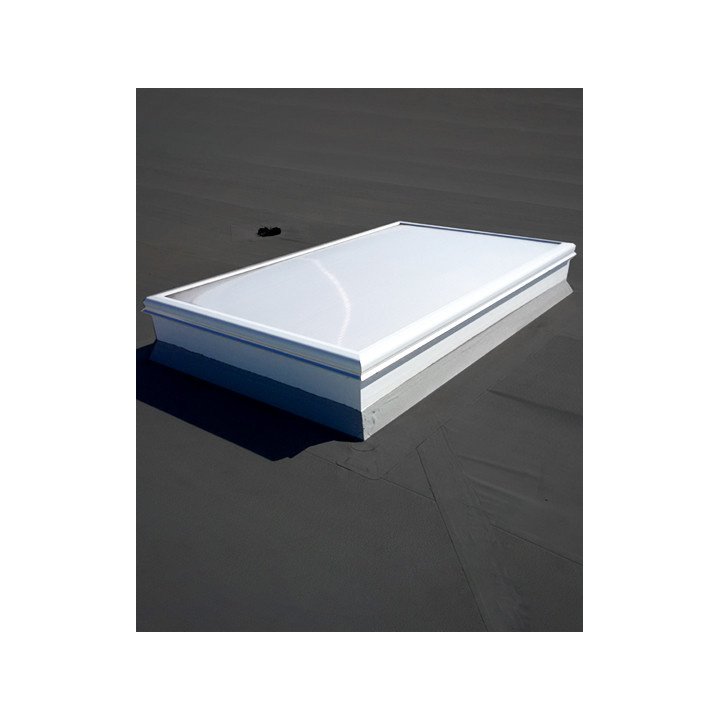

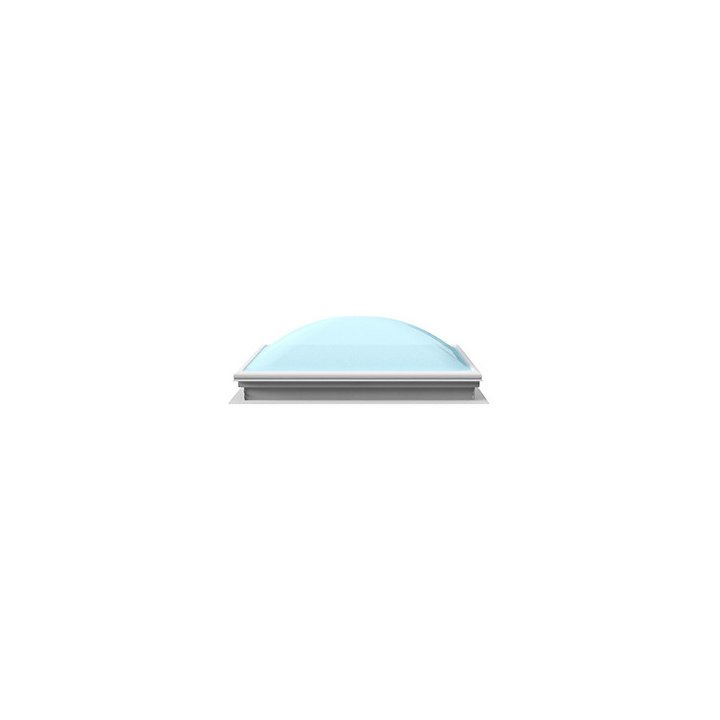

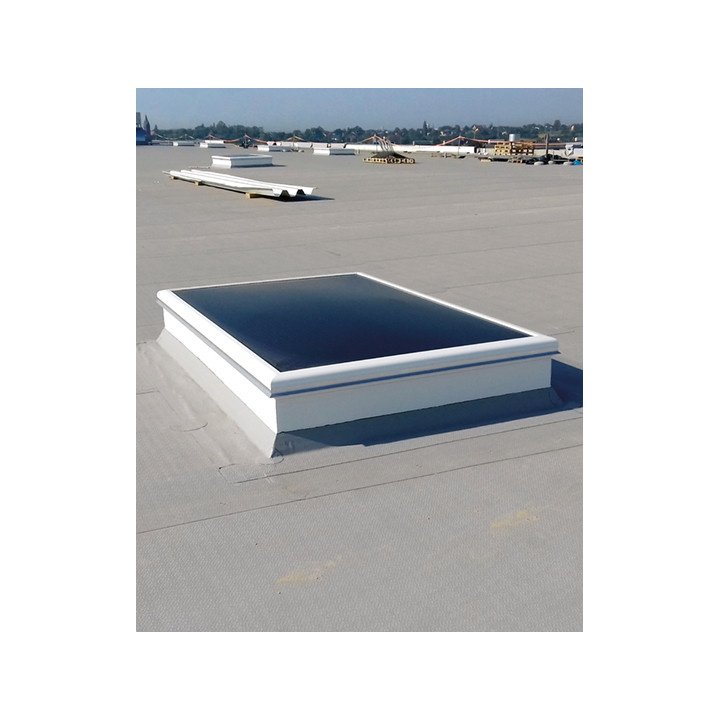

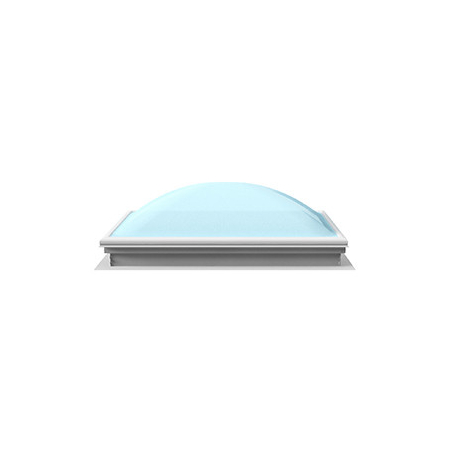

mcr ULTRA THERM - FIXED SKYLIGHTS

$0.00

Tax excluded

DESCRIPTION

high thermal insulation
no thermal bridges
wide scope of skylight sizes:
–  Type C (square): 80 x 80 cm ÷ 200 x 200 cm
–  Type E (rectangular): 80 x 120 cm ÷ 200 x 300 cm
–  Type NG-A (skew base) 80 x 80 cm ÷ 200 x 300 cm
partial or complete product delivery
leaf frame made of white, multi-chamber PVC profile system provides rigidity,
strength and high thermal parameters.
RAL palette colour selection for steel and aluminum bases
resistance to external fire, BROOF(t1) class according to EN 13501-5 (optional)
skylight available in configuration with soft body impact resistance
up to 1200 J (SB 1200)
product certified according to PN-EN 1873

DESCRIPTION

high thermal insulation
no thermal bridges
wide scope of skylight sizes:
–  Type C (square): 80 x 80 cm ÷ 200 x 200 cm
–  Type E (rectangular): 80 x 120 cm ÷ 200 x 300 cm
–  Type NG-A (skew base) 80 x 80 cm ÷ 200 x 300 cm
partial or complete product delivery
leaf frame made of white, multi-chamber PVC profile system provides rigidity,
strength and high thermal parameters.
RAL palette colour selection for steel and aluminum bases
resistance to external fire, BROOF(t1) class according to EN 13501-5 (optional)
skylight available in configuration with soft body impact resistance
up to 1200 J (SB 1200)
product certified according to PN-EN 1873

DESIGN
Base

type: straight, skew
height: 30 cm - 50 cm (straight), 25 cm - 70 cm (C/E)
30 - 70cm (NG-A) (additional option)
material: PVC, steel, aluminum
steel or aluminum base prepared for insulation of 50 mm thickness
possible to apply on existing plinth

Filling

Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.

Product allows to achieve high heat transfer:

» safety net
» limit switch

Heat transfer

Urc ≥ 0,8 W/m²K
Lighting

Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
Additional elements

» limit switch
» safety net
