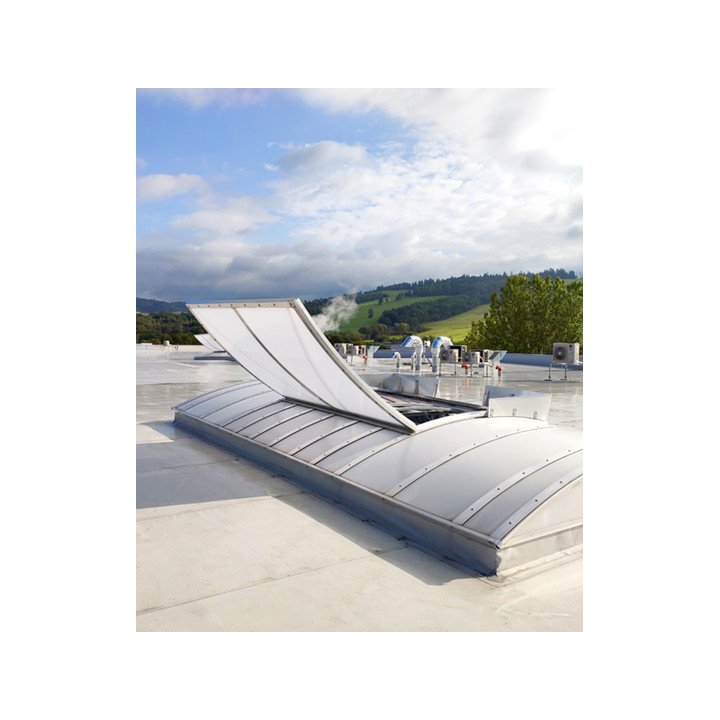

mcr PROLIGHT CONTINUOUS ROOFLIGHTS WITH INTEGRATED SMOKE VENTS

DESCRIPTION

  • continous rooflights with span up to 6,0 m
  • bottom part of base has a circumferential flange of standard width 70 mm,
    for installing on the roof structure
  • skylight base stiffened with bracing at 1500 mm or 3000 mm
  • wide scope of smoke vent sizes:
    –  single-leaf: 100 x 100 cm ÷ 200 x 250 cm
    –  double-leaf:  100 x 100 cm ÷ 250 x 250 cm
  • optional wind - and/or inlet deflector for better aerodynamic performance
  • products are delivered to construction site in elements and assemble in two steps:
    –  first step - base
    –  second step - top section
  • RAL palette colour selection for elements
  • CE marked rooflights according to EN 14963
  • fire performance for external fire, class BROOF(t1) in accordance with PN-EN 13501-5

DESIGN
Base

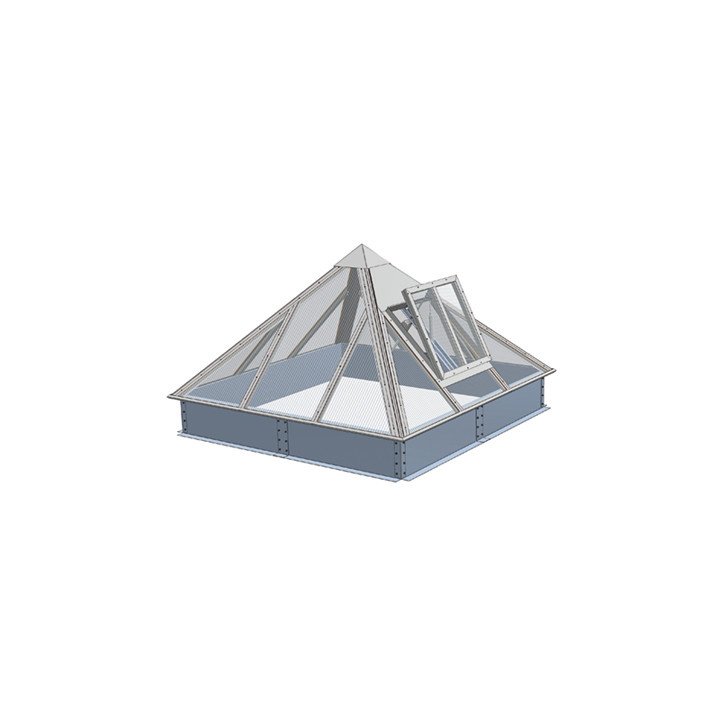

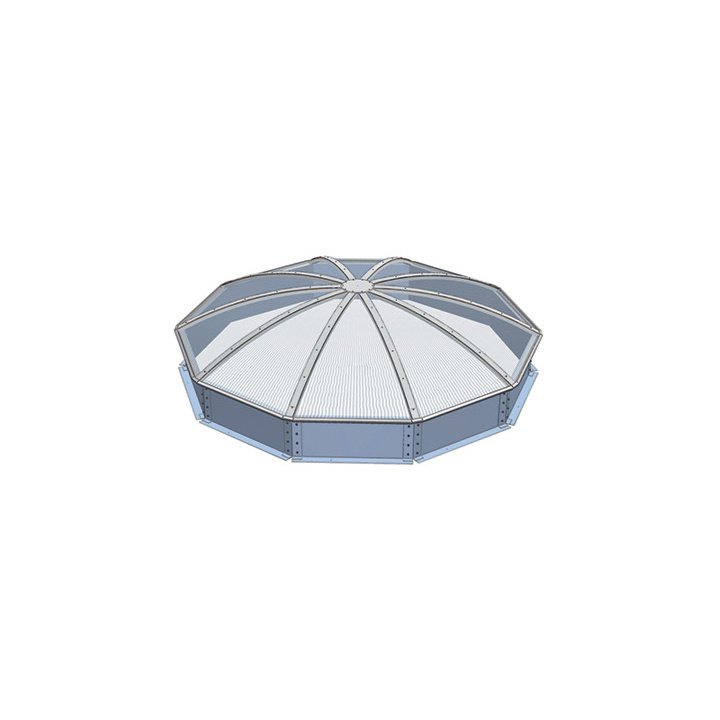

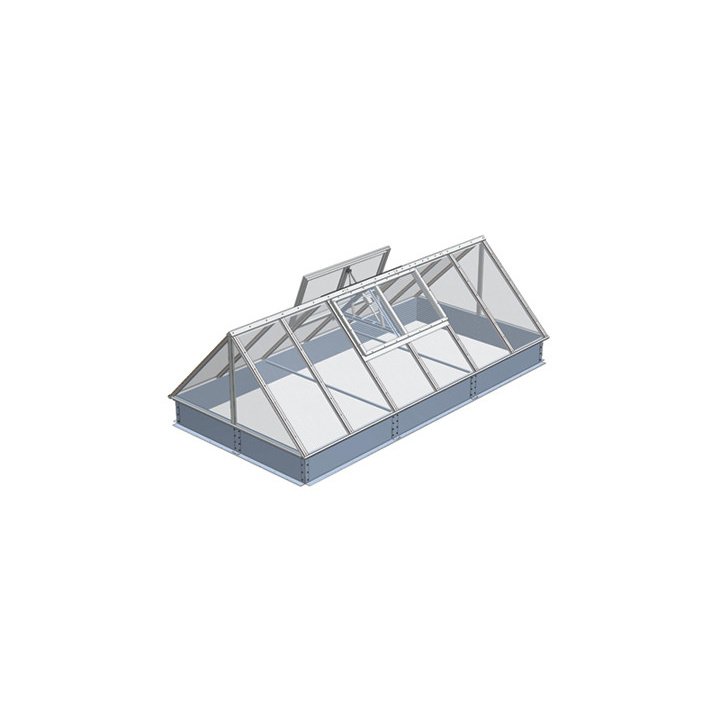

  • type: straight, ridge, slope, overlay, broken at the ridge
  • height: 30 cm - 70 cm
  • material: PVC, steel, aluminum
  • prepared insulation of 50 mm thickness (possible modification)
  • possible to apply on existing plinth

Filling

  • multi-chamber polycarbonate
  • multivariable single and multi-layer filling

Control system

  • smoke exhaust: electric (24 V-), pneumatic
  • ventilation: electric (24 V- / 230 V~)
 Smoke exhaust



Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.
 Lighting



Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
 Ventilation



Provides air supply and daily ventilation.
 Additional elements



» anti-burglar grid
» safety net
» limit switch
 Heat transfer


Product allows to achieve high heat transfer:

Urc ≥ 0,95 W/m²K.
 Application



Wide scope of shapes and sizes enable
installation on warehouses, public
services buildings, shopping malls,
commercial and sport objects.
