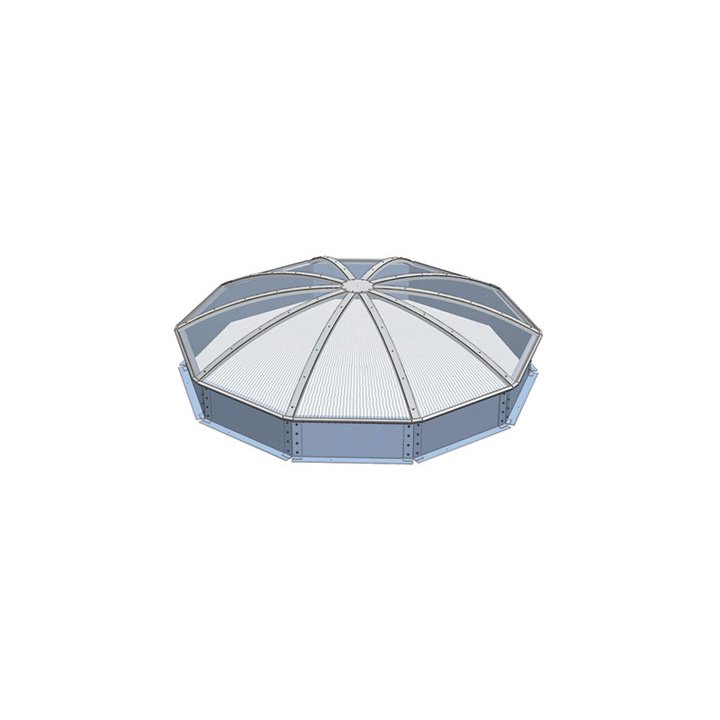

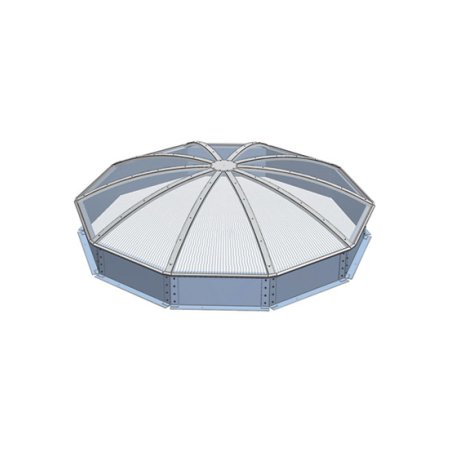

mcr PROLIGHT DOME SKYLIGHT
$0.00
Tax excluded
mcr PROLIGHT DOME SKYLIGHT
DESCRIPTION
- continous rooflights with span up to 6,0 m
- bottom part of base has a circumferential flange of standard width 70 mm,
for installing on the roof structure - skylight base stiffened with bracing at 1500 mm or 3000 mm
- products are delivered to construction site in elements and assemble in two steps:
- – first step - base
– second step - top section - RAL palette colour selection for elements
- CE marked rooflights according to EN 14963
- fire performance for external fire, class BROOF(t1) in accordance with PN-EN 13501-5
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
mcr PROLIGHT DOME SKYLIGHT
DESCRIPTION
- continous rooflights with span up to 6,0 m
- bottom part of base has a circumferential flange of standard width 70 mm,
for installing on the roof structure - skylight base stiffened with bracing at 1500 mm or 3000 mm
- products are delivered to construction site in elements and assemble in two steps:
- – first step - base
– second step - top section - RAL palette colour selection for elements
- CE marked rooflights according to EN 14963
- fire performance for external fire, class BROOF(t1) in accordance with PN-EN 13501-5
DESIGN
Base
- type: straight, ridge, slope, overlay, broken at the ridge
- height: 30 cm - 70 cm
- material: PVC, steel, aluminum
- prepared insulation of 50 mm thickness (possible modification)
- possible to apply on existing plinth
Filling
- multi-chamber polycarbonate
- multivariable single and multi-layer filling
Lighting
Heat transfer
Urc ≥ 0,95 W/m²K.
Additional elements
Data sheet
- Approvals
- CE
CPR
EPD/ITM
HIGIENIC - Heat transfer
- Product allows to achieve high heat transfer: Urc ≥ 0,95 W/m²K.
- Ventilation
- Provides air supply and daily ventilation.
- Lighting
- Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
- Smoke exhaust
- Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.
- Additional elements
- » limit switch
» anti-burglar grid
» safety net
