mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL
mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL
mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL
mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL
mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL
mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL
mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL
mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL
mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL
mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL

mcr PROSMOKE FIXED SMOKE CURTAINS MADE OF STEEL

Mercor
$0.00
Tax excluded

DESCRIPTION

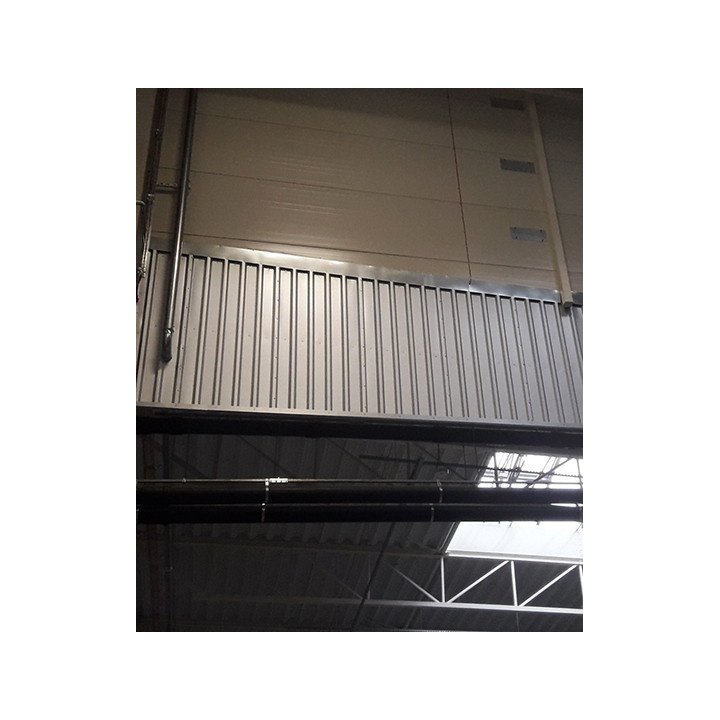

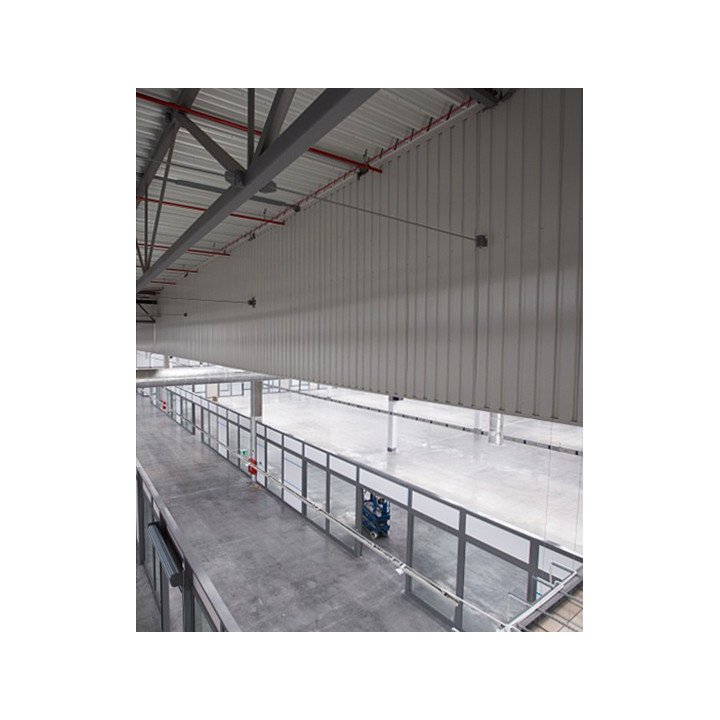

  • mcr PROSMOKE ST fixed smoke curtains are used for separating smoke zones in large hall buildings, mainly production and storage halls, where no limitations to the loading of bearing structure of the building exist
  • fire resistance parameters: DH120 (steel)
  • made of TR35 trapezoidal steel sheet of 0.5 mm thickness, zinc coated, Al-Zn or polyester paint
  • load bearing element of mcr PROSMOKE ST curtain shaped as angle or flat profile made of galvanized or painted steel sheet
  • various options for mounting the curtain of the steel structure
  • painting steel components with chosen RAL palette colour
  • Certificate of constancy of performance CE nr 1396-CPR-0037, Product acquires CE mark confirming compatibility with EN 12101-1
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

  •  PROSMOKE ST curtain shaped as angle or flat profile made of galvanized or painted steel sheet
  • various options for mounting the curtain of the steel structure
  • painting steel components with chosen RAL palette colour
  • Certificate of constancy of performance CE nr 1396-CPR-0037, Product acquires CE mark confirming compatibility with EN 12101-1



DESIGN
Base

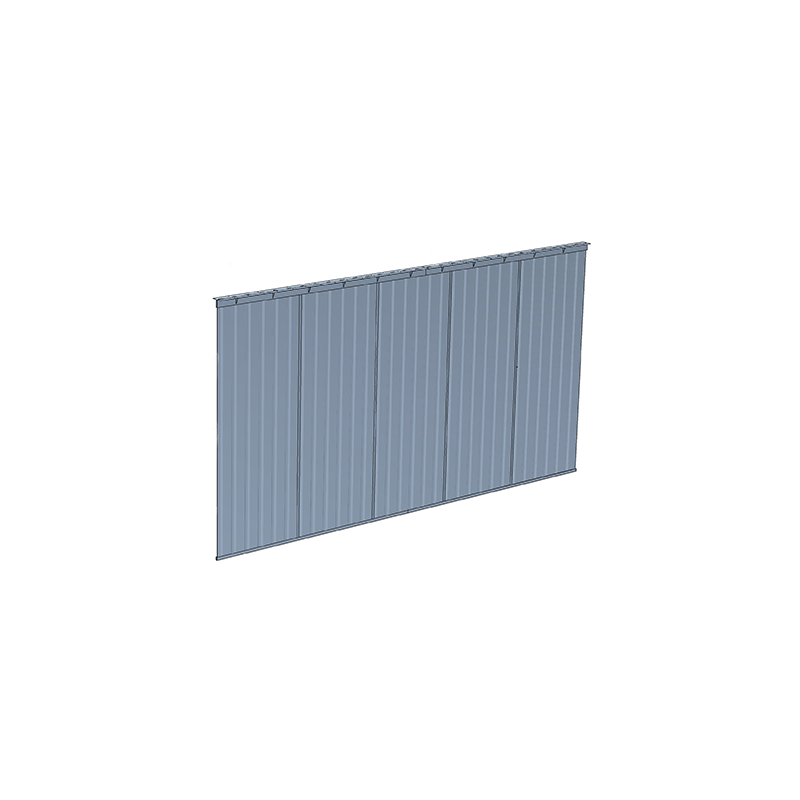

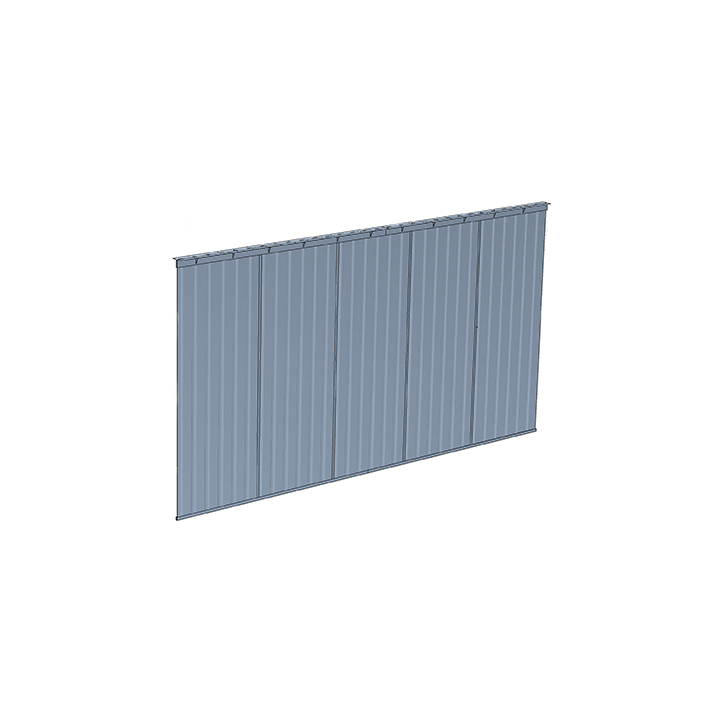

  • mcr PROSMOKE ST – fixed steel curtain

Fixed control steel curtain - structure

  • trapezoidal metal sheet

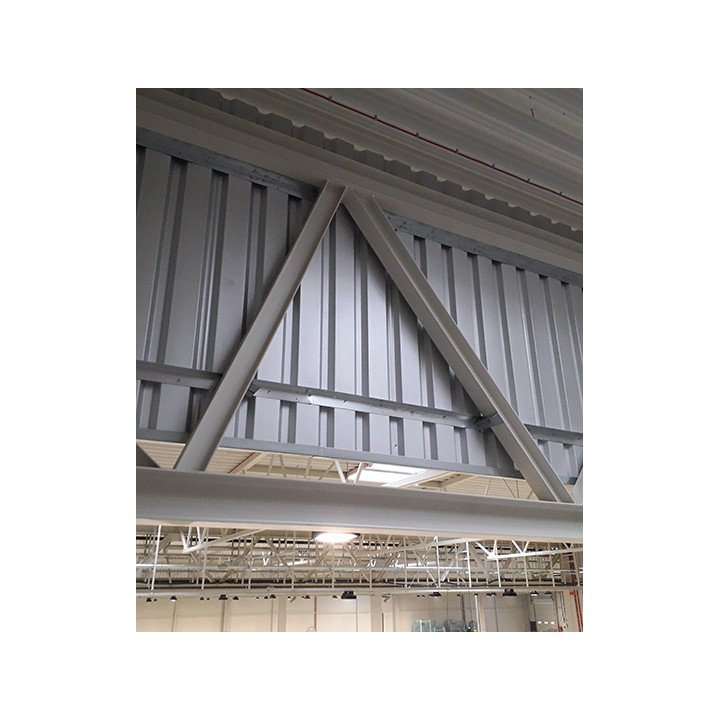

  • load bearing and bracing elements

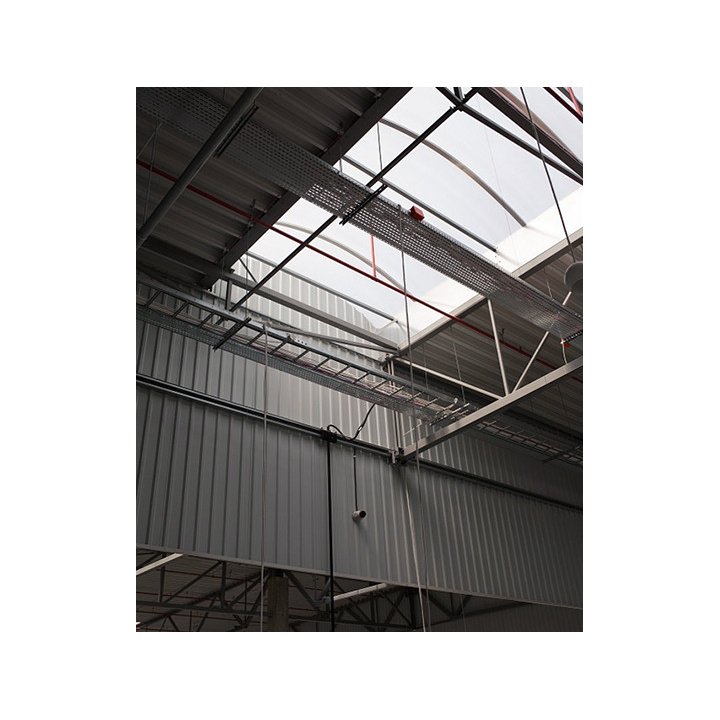

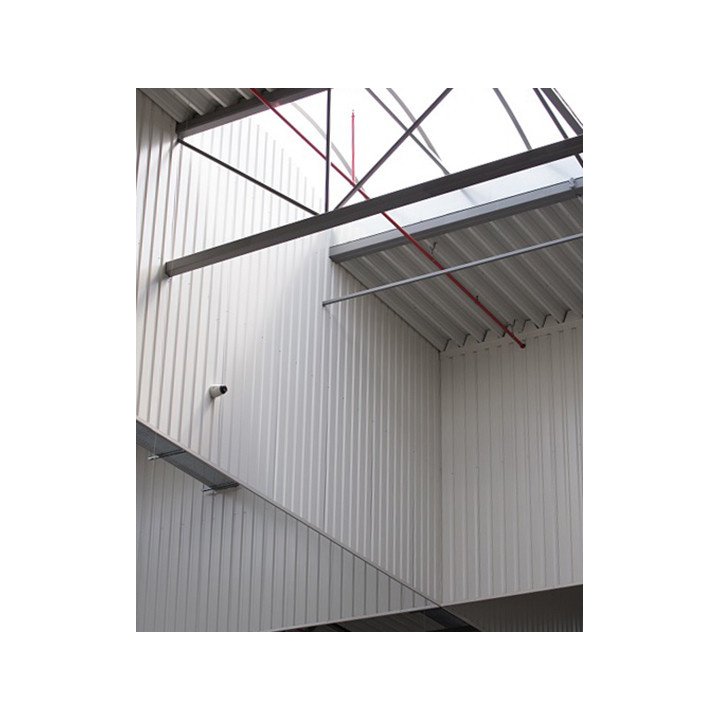

  Separation of smoke zones



Separated smoke zones stop the spread of smoke in passageways, staircases, stairs and hold the smoke in a room adjacent to the evacuation route. Correct arrangement of smoke curtains in the facility allows the smoke to be directed towards other system devices - smoke vents.

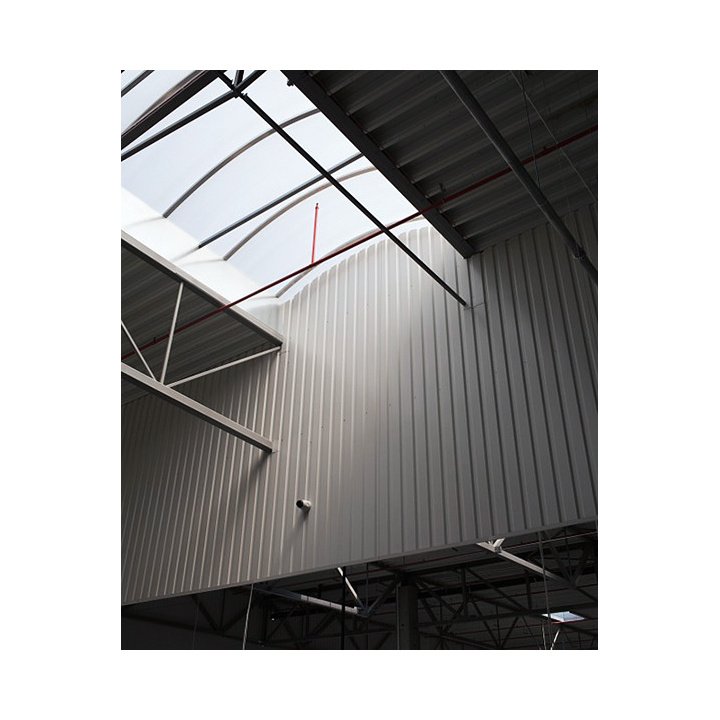

 Smoke flow optimisation
       and gas redirection into smoke vents



Proper placement of smoke curtains in a building makes it possible
to direct the smoke towards other elements of the system, i.e. smoke vents.
 Non-standard options



installation passages in fixed curtains
» additional bracing elements used for steel curtains of height ≥ 2.5 m:
– steel angle along curtain, up to its mid-height,
– angle profiles made of steel squared pipe, placed every 3 m
» elements painted to any RAL colour
» service passage
» guides

  • Brand

  • Approvals
    CE
    CPR
  • Non-standard options
    installation passages in fixed curtains
    – angle profiles made of steel squared pipe, placed every 3 m
    » elements painted to any RAL colour
    » service passage
  • fire resistance parameters:
    DH120 (steel)
