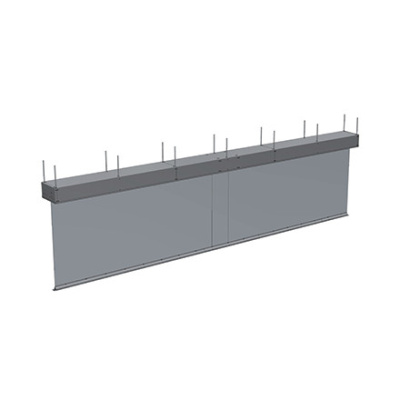

mcr PROSMOKE ONE AUTOMATIC SMOKE CURTAINS

mcr PROSMOKE ONE AUTOMATIC SMOKE CURTAINS

$0.00
Tax excluded

DESCRIPTION

  • automatic smoke curtains FS and C type are responsible for separation of smoke zones within the building, and stop smoke from spreading within passages, on staircases
    or escalators
  • automatic smoke curtains are used in buildings where the visual aspect
    of building plays an important role
  • fire resistance parameters:
    –      automatic curtains FS: D30 / D180 / DH30
    –  automatic curtains C: D30/ DH30,
  • vast range of curtain mounting to ceiling lintel or object steel construction
  • automatic curtain as one folded or modular device can be connected under
    an angle or contain evacuation entrance
  • painting steel components with chosen RAL palette colour
  • classification (as per EN 12101) according to:
    – Certificate of constancy of performance WE 1396-CPR-0132 (FS curtains)
    – Certificate of constancy of performance WE: 1396-CPR-0133 (C curtains)
    –      CE certificate
Share

mcr PROSMOKE ONE AUTOMATIC SMOKE CURTAINS

DESCRIPTION

  • automatic smoke curtains FS and C type are responsible for separation of smoke zones within the building, and stop smoke from spreading within passages, on staircases
    or escalators
  • automatic smoke curtains are used in buildings where the visual aspect
    of building plays an important role
  • fire resistance parameters:
    –      automatic curtains FS: D30 / D180 / DH30
    –  automatic curtains C: D30/ DH30,
  • vast range of curtain mounting to ceiling lintel or object steel construction
  • automatic curtain as one folded or modular device can be connected under
    an angle or contain evacuation entrance
  • painting steel components with chosen RAL palette colour
  • classification (as per EN 12101) according to:
    – Certificate of constancy of performance WE 1396-CPR-0132 (FS curtains)
    – Certificate of constancy of performance WE: 1396-CPR-0133 (C curtains)
    –      CE certificate

DESIGN
Base

  • mcr PROSMOKE ONE – automatic smoke curtain

Automatic curtain - structure

  • steel sheet casing with roller
  • incombustible fabric
  • motor
  • bottom balast
  • masking element
  Separation of smoke zones



Separated smoke zones stop the spread of smoke in passageways, staircases, stairs and hold the smoke in a room adjacent to the evacuation route. Correct arrangement of smoke curtains in the facility allows the smoke to be directed towards other system devices - smoke vents.
 Smoke flow optimisation
       and gas redirection into smoke vents



Proper placement of smoke curtains in a building makes it possible
to direct the smoke towards other elements of the system, i.e. smoke vents.

  • Approvals
    CE
  • Separation of smoke zones
    Separated smoke zones stop the spread of smoke in passageways, staircases, stairs and hold the smoke in a room adjacent to the evacuation route. Correct arrangement of smoke curtains in the facility allows the smoke to be directed towards other
  • Smoke flow optimisation and gas redirection into smoke vents
    Proper placement of smoke curtains in a building makes it possible to direct the smoke towards other elements of the system, i.e. smoke vents.
  • fire resistance parameters:
    – automatic curtains C: D30/ DH30,
    – automatic curtains FS: D30 / D180 / DH30
  • classification (as per EN 12101) according to:
    – CE certificate
    – Certificate of constancy of performance WE 1396-CPR-0132 (FS curtains)
    – Certificate of constancy of performance WE: 1396-CPR-0133 (C curtains)
  • Reliability
    1000 cycles
  • Max shafts No.
    10
    12
  • Minimum length
    0,8 m
    2 m
  • Masking
    60 mm
    Angle connections
    or 80 mm (only for curtain's casing mounted above the suspended ceiling)
  • Max power consumption ( 24 V- )
    0,25 A (brake)
    4 A (motor)
  • Max power consumption ( 230 V~ )
    270 W (motor)
  • Control panel
    mcr 9705-5A / mcr 0204
    mcr 9705-5A/-8A
  • Control panel Extension module (optional)
    mcr R0424/-48 –Kx
  • Classification (as per Certificate of Conformity according to EN 12101-1)
    Certificate of constancy of performance 1396-CPR-0132
    Certificate of constancy of performance 1396-CPR-0133

mcr

Download (3.23MB)

2024_Technical_Catalogue

2024_Technical_Catalogue_mcr PROSMOKE_Smoke curtains__WWW

Download (2.01MB)
