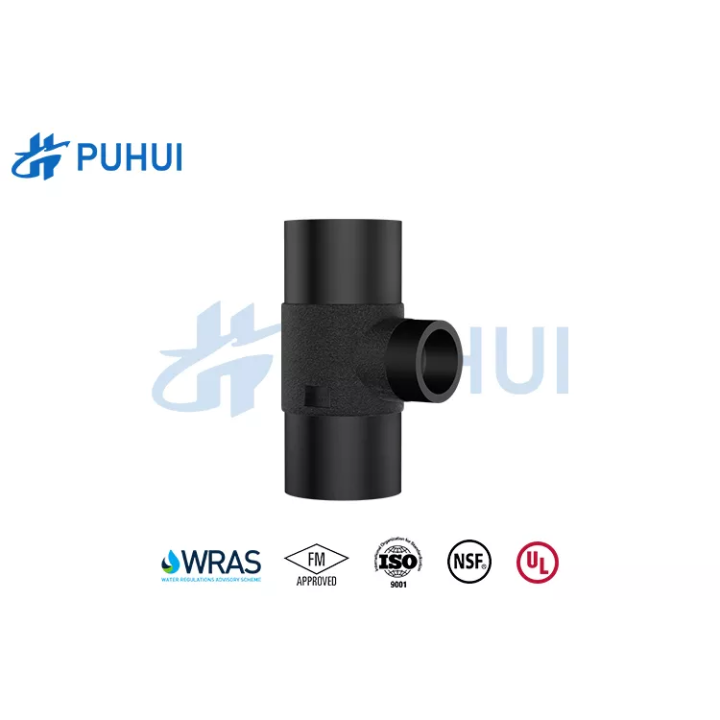

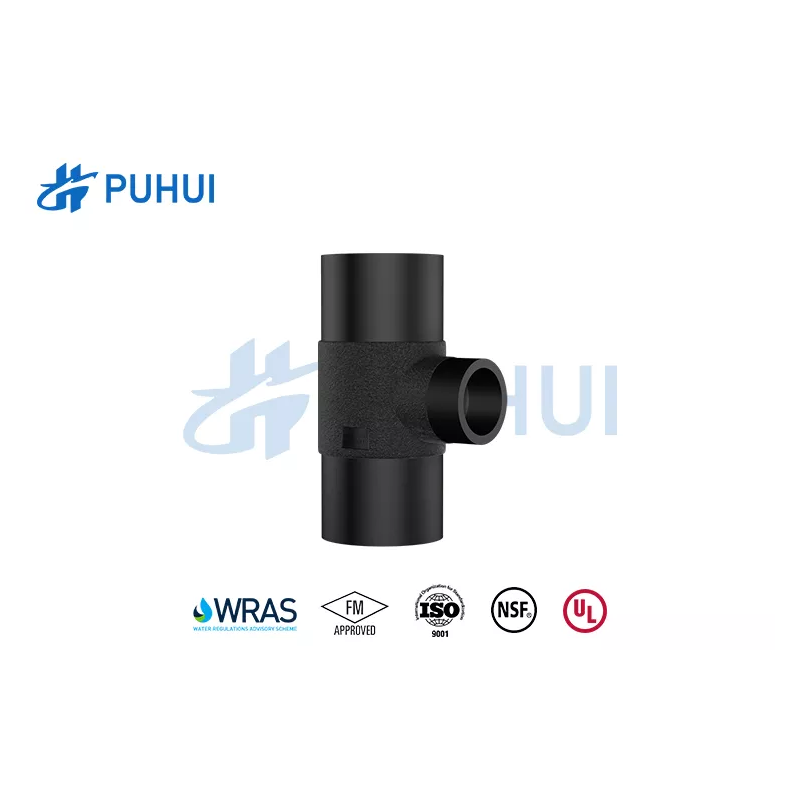

HDPE Butt Fusion Equal Tee

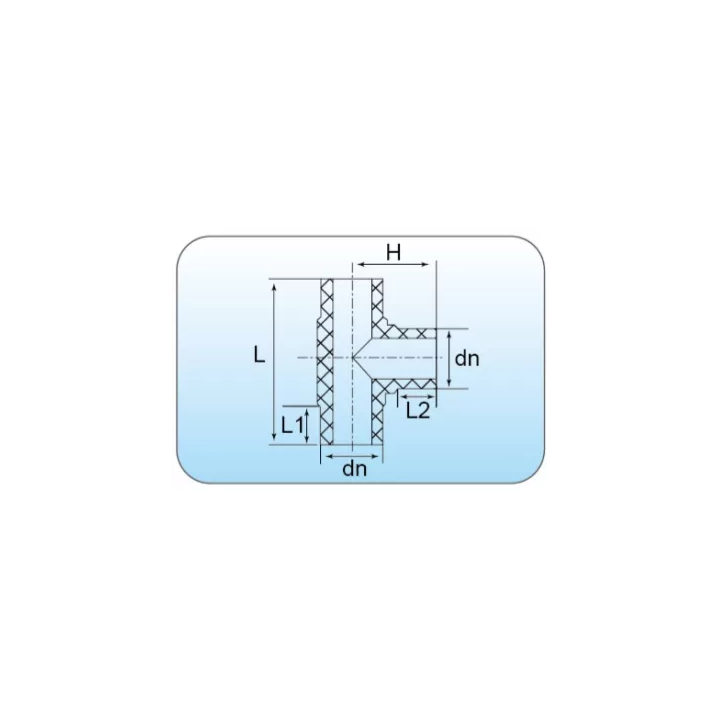

dn L L1 L2 H e e e
SIZE(dn) mm mm mm mm SDR17 SDR13.6 SDR11
T63 203 63 63 100 　 5.8
T75 232 70 70 117 　 6.8
T90 276 80 80 138 　 8.2
T110 300 83 83 150 8.1 10
T125 305 80 80 150 9.2 11.4
T140 320 80 80 160 10.3 12.7
T160 383 100 100 195 11.8 14.6
T180 400 90 90 197 　 13.3 16.4
T200 456 110 110 228 14.7 18.2
T225 485 110 110 242 　 16.6 20.5
T250 505 110 110 250 　 18.4 22.7
T280 535 110 110 267 　 20.6 25.4
T315 575 102 110 285 　 23.2 28.6
T355 595 110 110 295 21.1 26.1 32.2
T400 639 110 110 320 23.7 29.4 36.3
T450 750 135 150 405 26.7 33.1 40.9
T500 800 135 170 455 29.7 36.8 45.4
T560 910 140 170 475 33.2 41.2 50.8
T630 970 150 160 485 37.4 46.3 57.2
T710 1140 210 210 570 42.1 52.2 64.5
T800 1260 230 230 630 47.4 58.8 72.6
