Diesel Foampack compact unit, in accordance with FM

Diesel Foampack compact unit, in accordance with <FM>, consisting of the following

components:

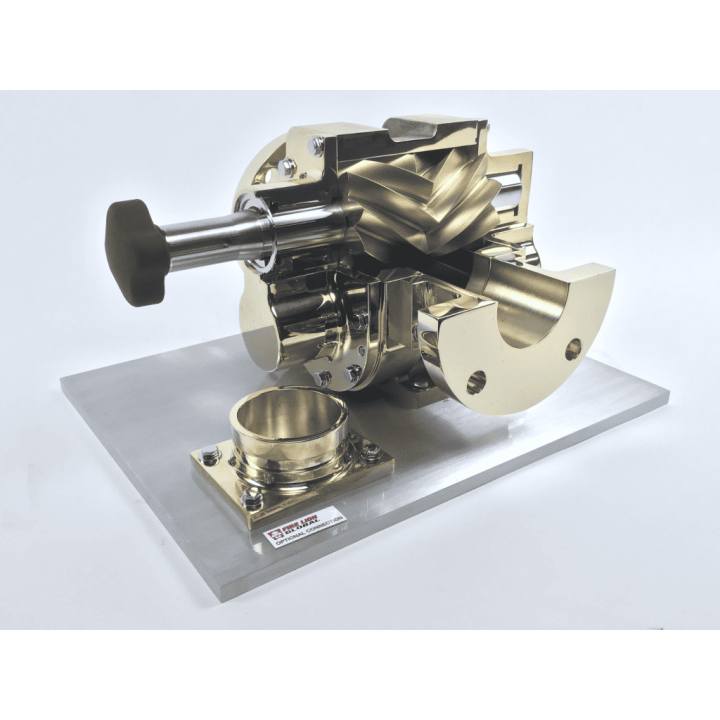

Positive displacement pump,

Make : Fire Lion

Type : FP2-150

Capacity : 150 USgpm

Head (incl. Speeddroop) : 16 bar - P. man.

Speed, approx. : 1760 rpm

Suitable for : 450 l/m x 16 Bar under positive suction head

Suction flange : DN050 / 2" : ASA - 150#

Discharge flange : DN050 / 2" : ASA - 150#

Max. power absorbed : 44 kW (non overloading)

Executed with:

- Pump casing : bronze

- Liners : bronze

- Pump shaft : duplex ss gecoat

- Shaft seal : stainless steel with PTFE triple lip seal

- Safety valve : built on the discharge flange of the pump

- Suction and discharge pressure gauge : Ø 100mm class I, glycerin filled and mounted on the pump

The maximum permitted negative pressure on the suction side of the foam pump is 0,3 bar. Filters and other

components must be included in the hydraulic calculation.

Elastic coupling, equiped with coupling guard.

Diesel driver,

Make : Clarke

Type : JU4R-UF19

Execution : 4,5 liter, 4 cylinder in line, with naturally aspirated

Rating : 44 kW according to <FM>

Speed : 1760 rpm

Executed with:

- complete electrical system, 24V

- built-on radiator

1

- flanged exhaust compensator

- internal crank housing ventilation

- mechanical manual stop

- startsolenoïds with mechanical emergency starter

- cooling water pre heating

- built-on engine instrument panel

- cooling water valve alarm

Diesel controller,

Make : Tornatech

Type : GPD-24 <FM>-approved

Supply : 230V 1N~ 50Hz ± 3,5kW

Executed with:

- micro processor controller with flash memory, in steel cabinet IP55

- double battery chargers with automatic boost

- remote start contact for starting the Foampack

Starter batteries,

Double set lead acid starter batteries. In steel box with non conductive cover.

Double wall fuel tank, Vlarem II certificied, net capacity of 200 liter, suitable for min. 8 uur continuous

full load operation. Complete with all parts according to specifications with fuel valve alarm.

Common base frame, of rigid construction for all above mentioned components, complete cabling

included.Integrated drip pan in the base frame.

Separately will be supplied per Firepack:

- 1x Exhaust silencer type HM, size DN080 / 3" complete with flanges and packing.
