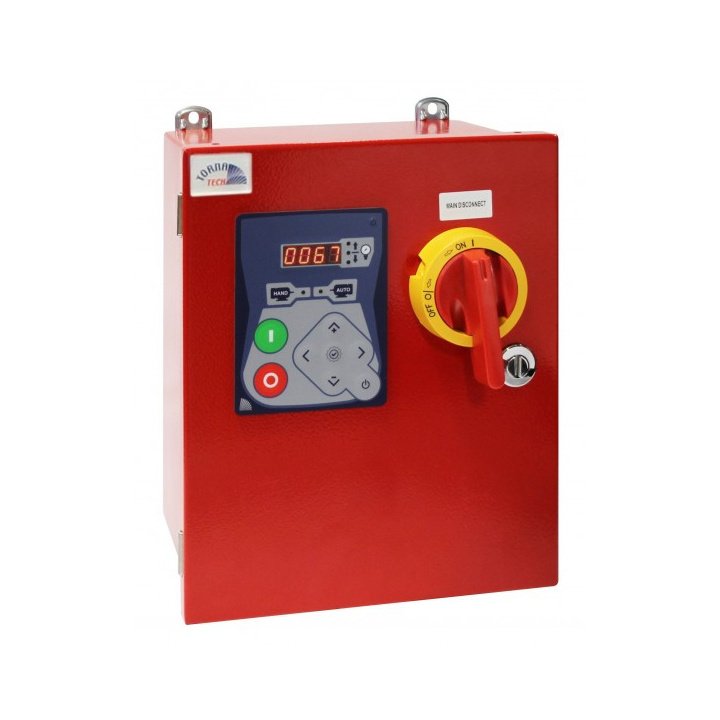

JPx Series – Jockey Pump Controllers Nema 2

JPx Series – Jockey Pump Controllers, Nema 2

Standard Features

All Models except Models DJP and DJD

• HP rated fuse-less thru-the-door main disconnect switch.
• iPD+ Operator Interface provides
  • Visual indicators
    • Manual motor run
    • Automatic motor run
    • System pressure
    • Automatic mode
    • Off mode
    • Motor overload
    • Pump start counter
    • Elapsed time meter (hours / non-resettable)
  • All adjustments on door front
    • Timers
      • Minimum run period timer
      • Sequential start timer
    • Operators
      • OFF-AUTO pushbutton
      • Start and stop pushbuttons.
• Pressure transducer

Models JP1, JP2 and JP3

• Accepts single power source
• Controls one (1) jockey pump
• JP1 = 120V/1Ph/60Hz
• JP2 = 220V to 240V/1Ph/60Hz
• JP3 = 200V to 600V/3Ph/50-60Hz
• Thermo-magnetic motor protector
• Across the line motor starter

Model JPY

• Accepts single power source
• Controls one (1) jockey pump
• Only available for 200V to 600V/3Ph/50-60Hz (3-phase applications)
• Thermo-magnetic motor protector
• Wye-delta open transition motor starter

Model JPD

• Accepts single power source
• Controls two (2) pumps as LEAD-STANDBY (full redundancy)
• Available for
  • 220V to 240V/1Ph/60Hz
  • 200V to 600V/3Ph/50-60Hz
• Automatic alternation
• Lead pump selector switch
• Thermo-magnetic motor protectors (x2)
• Across the line motor starters (x2)

Model JPV

• Accepts single power source
• Controls one (1) jockey pump
• Only available for 200V to 600V/3Ph/50-60Hz (3-phase applications)
• Variable Speed Drive with built-in motor protection

Model DJP

• Accepts two separate power sources (i.e. normal & alternate)
• Automatically connects to alternate power in case of normal power failure.
• Controls one (1) pump
• Only available for 200V to 600V/3Ph/50-60Hz (3-phase applications)
• Hand-Off-Auto selector switch
• Normal-Test selector switch
• One automatic switchover device (transfer switch)
• Visual indicators
  • Power On
  • Motor Run
  • Alternate power available
  • Normal power available
  • Connected to Normal position
  • Connected to Alternate position
• Thermo-magnetic motor protectors (x2)
• Across the line motor starters (x2)

Model DJD

• Accepts two separate power sources (i.e. normal & alternate)
• Automatically connects to alternate power in case of normal power failure.
• Controls two (2) pumps as LEAD-STANDBY (full redundancy)
• Only available for 200V to 600V/3Ph/50-60Hz (3-phase applications)
• Hand-Off-Auto selector switch
• Normal-Test selector switch
• P1- AUTO-P2 lead pump selector switch
• One automatic switchover device (transfer switch)
• Visual indicators
  • Power On
  • Motor Run (x2)
  • Alternate power available
  • Normal power available
  • Connected to Normal position
  • Connected to Alternate position
• Thermo-magnetic motor protectors (x2)
• Across the line motor starters (x2)
