mcr OSO THERM 75 SMOKE EXHAUST WINDOWS

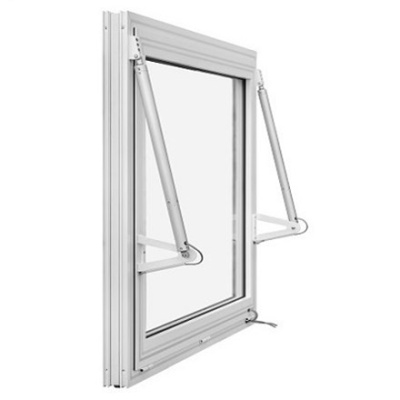

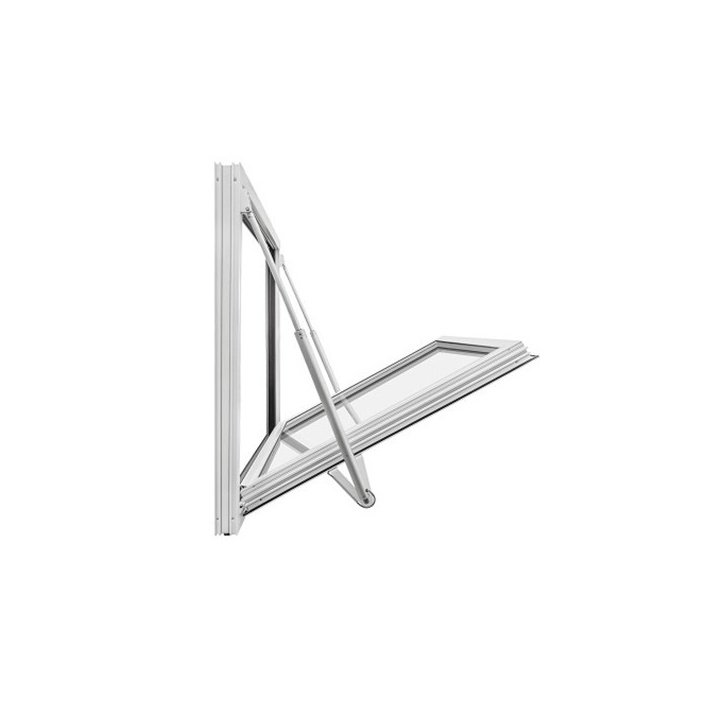

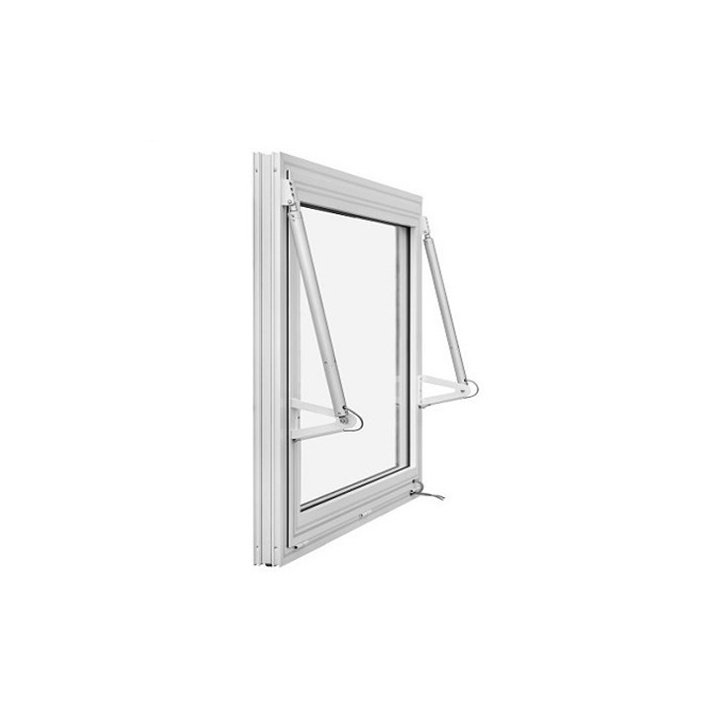

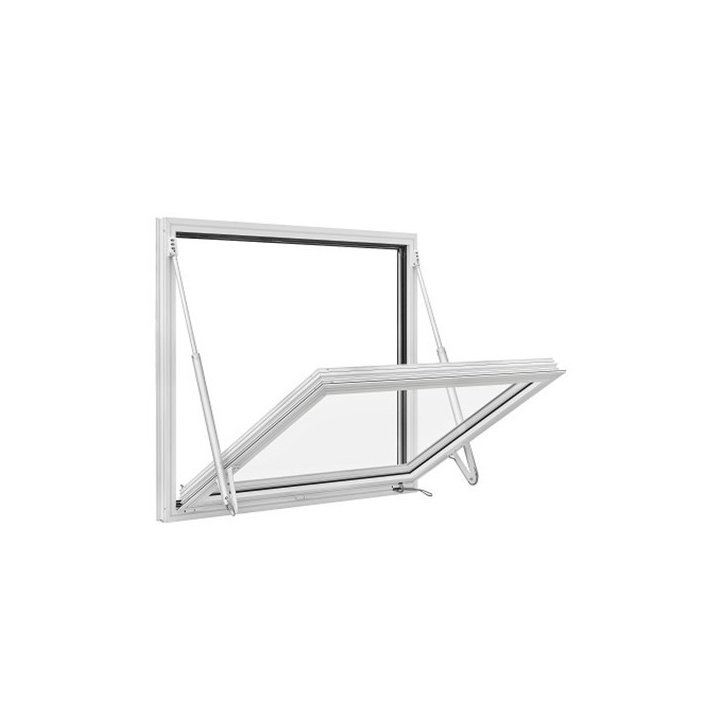

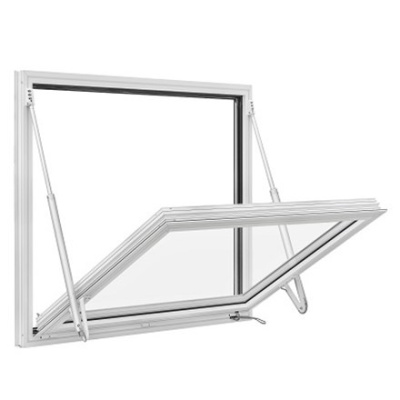

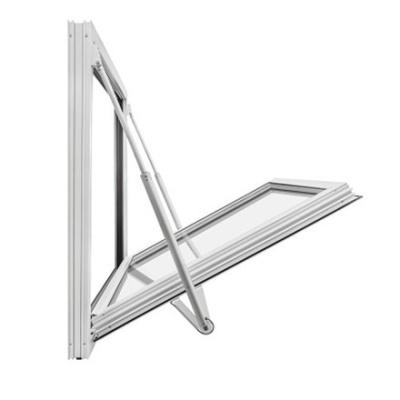

  • smoke exhaust and ventilation window are opening in configurations: inwards/outwards and top/bottom opening
  • mounted in vertical partitions (wall, enclosure, etc.)
  • can be incorporated into post-and-beam facade systems available on the market
  • wide scope of window sizes:
      horizontal set-up: (W x H) 80 x 80 cm ÷ 220 x 160 cm
      vertical set-up: (W x H) 80 x 80 cm ÷ 270 x 130 cm
  • window opening angle: 10º ÷ 90º
  • wide selection of RAL palette colours and decorative woodgrain coating
  • classification according to the Certificate of Constancy of Performance
    No. 1396-CPR-0128 (according to EN 12101-2)
Share

mcr OSO THERM 75 SMOKE EXHAUST WINDOWS

DESCRIPTION

  • smoke exhaust and ventilation window are opening in configurations: inwards/outwards and top/bottom opening
  • mounted in vertical partitions (wall, enclosure, etc.)
  • can be incorporated into post-and-beam facade systems available on the market
  • wide scope of window sizes:
      horizontal set-up: (W x H) 80 x 80 cm ÷ 220 x 160 cm
      vertical set-up: (W x H) 80 x 80 cm ÷ 270 x 130 cm
  • window opening angle: 10º ÷ 90º
  • wide selection of RAL palette colours and decorative woodgrain coating
  • classification according to the Certificate of Constancy of Performance
    No. 1396-CPR-0128 (according to EN 12101-2)

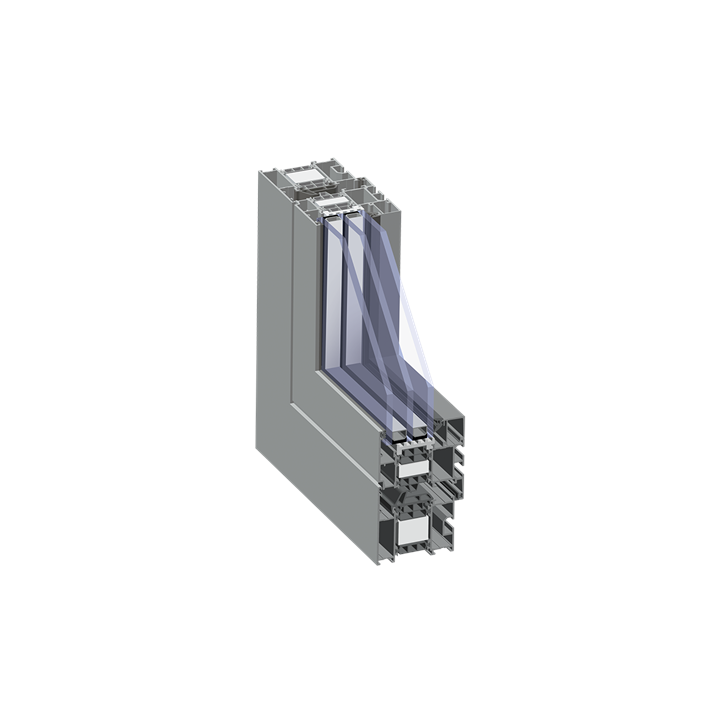

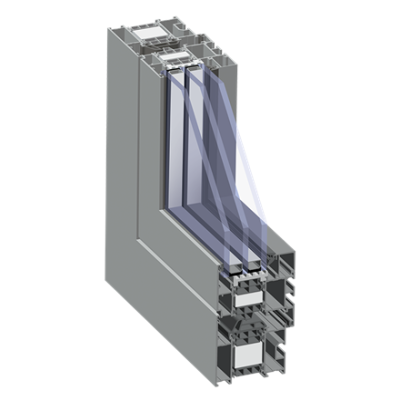

DESIGN

  • window with multi-chamber aluminum profiles
  • leaf and frame groove system with covering profile
    for easy installation of cables and actuators consoles

Filling

  • triple glass
  • double glass
  • ALU sandwich panel

Control system

  • smoke exhaust: electric: (24 V- / 48 V-)
  • ventilation: (230 V~)
 Smoke exhaust



Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.

 Lighting



Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.

 Ventilation



Provides air supply and daily ventilation.

 Non-standard options



» possibility of making bi-colour windows
» decorative bars referring to old or modern architecture
» glazing bars

 Heat transfer


Product allows to achieve high heat transfer:

Urc ≥ 0,8 W/m²K.
 Application

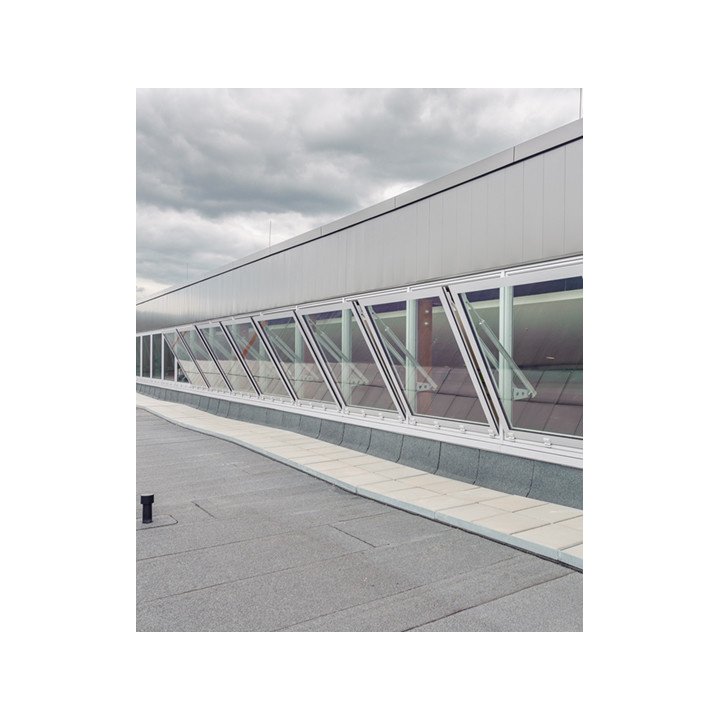

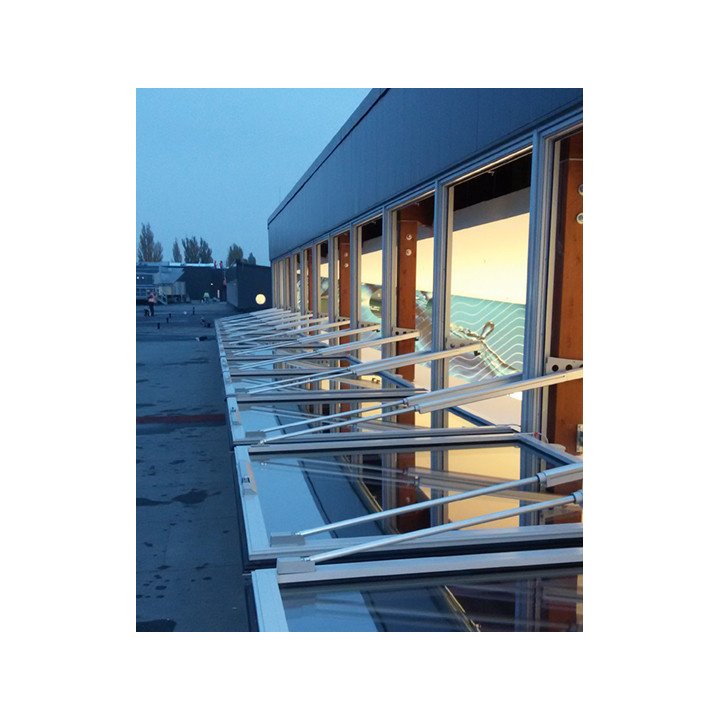

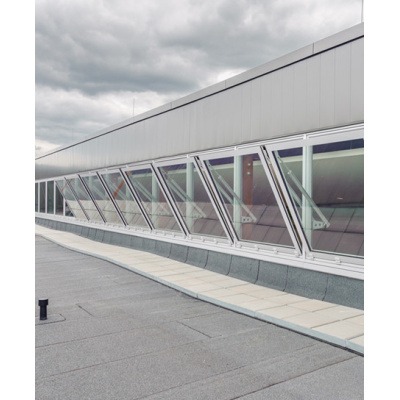

Wide scope of shapes and sizes enable
installation on warehouses, public
services buildings, shopping malls,
commercial and sport objects.

  • Brand

  • Approvals
    CE
    CPR
  • Heat transfer
    Urc ≥ 0,8 W/m²K
  • Ventilation
    Provides air supply and daily ventilation.
  • Lighting
    Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
  • Non-standard options
    » decorative bars referring to old or modern architecture
    » glazing bars
    » possibility of making bi-colour windows

HO.20.00525.docx

HO.20.00525.docx

Download (1.64MB)

2024_Technical_Catalogue

2024_Technical_Catalogue_mcr OSO THERM 75_Window smoke exhaust systems_EN_WWW

Download (2.84MB)

2023_FOLDER_OSO THERM 75

2023_FOLDER_OSO THERM 75_WWW_EN

Download (580.08KB)
