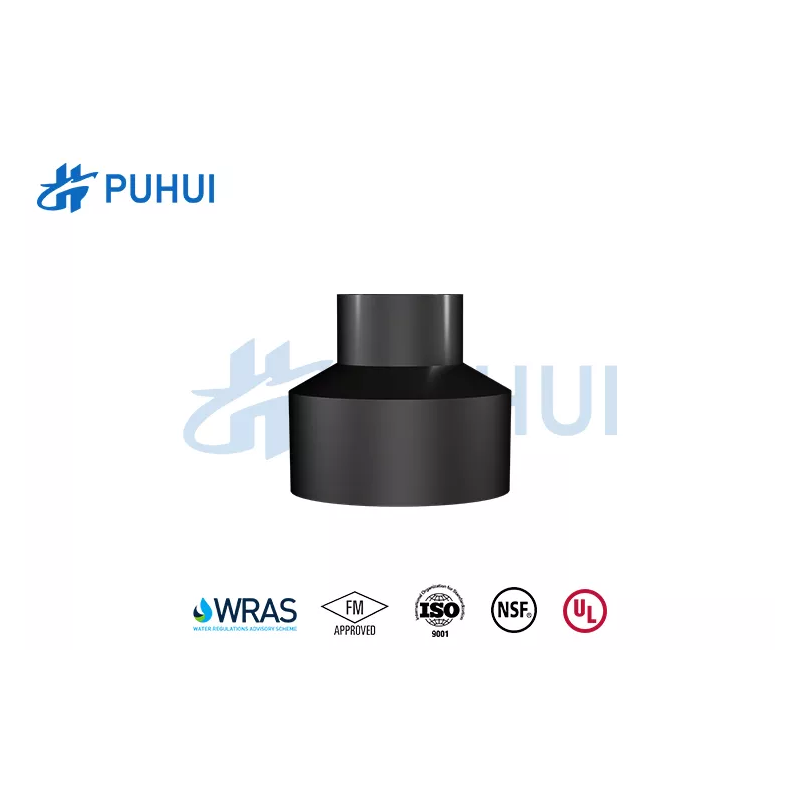

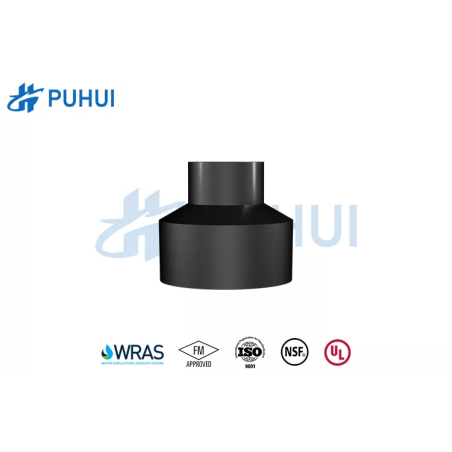

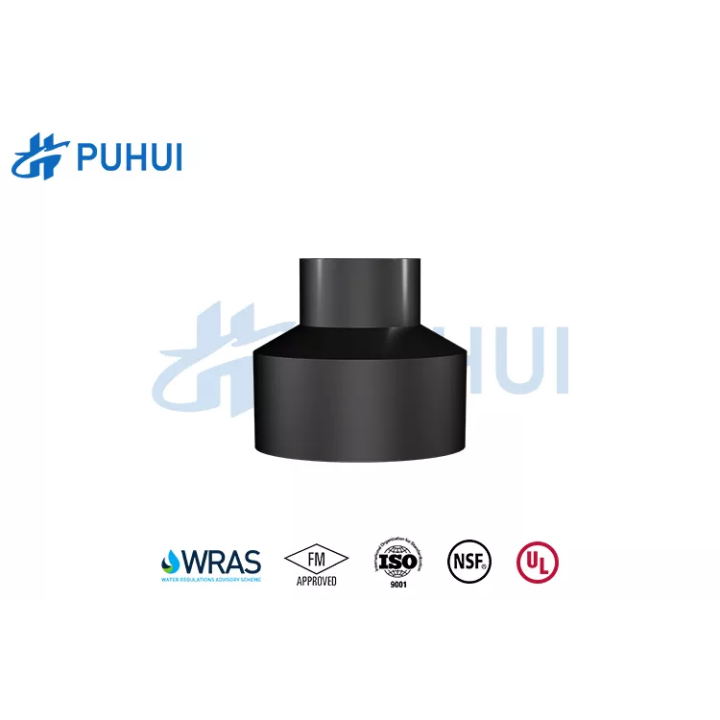

HDPE Butt Fusion Reducer
search
  • HDPE Butt Fusion Reducer

HDPE Butt Fusion Reducer

$0.00
Tax excluded

HDPE Butt Fusion Reducer

Raw Materials: PE100, PE100RC
Standards : EN12201, ISO 4427, AS/NZS 4129
Diameter: DN63-800mm (Larger size can be customized)
PressureRating: SDR9, SDR11, SDR13.6, SDR17
Certificates: UL, WRAS, NSF, ISO, CE
Color: Black, colors can be customized
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Specification

HDPE Butt Fusion Reducer3

dn L H1 H2 e e e
SIZE(dn) mm mm mm SDR17 SDR13.6 SDR11
L75-50 130 56 58 6.8*4.6
L75-63 130 59 64 6.8*5.8
L90-50 138 63 52 6.7*3.7 8.2*4.6
L90-63 138 63 53 6.7*4.7 8.2*5.8
L90-75 138 63 60 6.7*5.6 8.2*6.8
L110-50 172 78 60 8.1*3.7 10.0*4.6
L110-63 172 78 60 8.1*4.7 10.0*5.8
L110-75 172 78 65 8.1*5.6 10.0*6.8
L110-90 172 78 65 8.1*6.7 10.0*8.2
L125-63 183 78 70 9.2*4.7 11.4*5.8
L125-75 183 78 68 9.2*5.6 11.4*6.8
L125-90 183 78 68 9.2*6.7 11.4*8.2
L125-110 183 78 72 9.2*8.1 11.4*10.0
L140-63 180 80 65 10.3*4.7 12.7*5.8
L140-75 180 80 70 10.3*5.6 12.7*6.8
L140-90 180 80 70 10.3*6.7 12.7*8.2
L140-110 180 80 75 10.3*8.1 12.7*10.0
L140-125 180 80 70 10.3*9.2 12.7*11.4
L160-63 203 85 67 11.8*4.7 14.6*5.8
L160-75 208 85 75 11.8*5.6 14.6*6.8
L160-90 214 85 83 11.8*6.7 14.6*8.2
L160-110 214 85 83 11.8*8.1 14.6*10.0
L160-125 214 85 85 11.8*9.2 14.6*11.4
L180-110 200 80 100 13.3*8.1 16.4*10.0
L180-125 200 80 100 13.3*9.2 16.4*11.4
L180-140 200 80 100 13.3*10.3 16.4*12.7
L180-160 170 80 80 13.3*11.8 16.4*14.6
L200-63 218 75 67 14.7*4.7 18.2*5.8
L200-75 218 75 75 14.7*5.6 18.2*6.8
L200-90 218 75 93 14.7*6.7 18.2*8.2
L200-110 218 75 97 14.7*8.1 18.2*10.0
L200-160 210 75 100 14.7*11.8 18.2*14.6
L200-180 210 75 108 14.7*13.3 18.2*16.4
L225-110 218 80 87 16.6*8.1 20.5*10.0
L225-160 218 80 80 16.6*11.8 20.5*14.6
L225-200 218 80 90 16.6*14.7 20.5*18.2
L250-110 260 90 100 18.4*8.1 22.7*10.0
L250-160 230 90 93 18.4*11.8 22.7*14.6
L250-200 230 90 97 18.4*14.7 22.7*18.2
L250-225 230 90 100 18.4*16.6 22.7*20.5
L280-110 255 105 95 20.6*8.1 25.4*10.0
L280-125 245 105 100 20.6*9.2 25.4*11.4
L280-140 245 105 100 20.6*10.3 25.4*12.7
L280-160 245 105 105 20.6*11.8 25.4*14.6
L280-180 245 105 105 20.6*13.3 25.4*16.4
L280-200 245 105 120 20.6*14.7 25.4*18.2
L280-225 245 105 120 20.6*16.6 25.4*20.5
L280-250 245 105 130 20.6*18.4 25.4*22.7
L315-110 235 90 87 23.2*8.1 28.6*10.0
L315-160 235 90 85 23.2*11.8 28.6*14.6
L315-200 240 90 90 23.2*14.7 28.6*18.2
L315-225 240 90 105 23.2*16.6 28.6*20.5
L315-250 240 90 100 23.2*18.4 28.6*22.7
L315-280 240 90 110 23.2*20.6 28.6*25.4
L355-110 270 105 100 21.1*6.6 32.2*10.0
L355-200 260 105 110 21.1*11.9 32.2*18.2
L355-225 255 105 110 21.1*13.4 32.2*20.5
L355-250 240 105 110 21.1*14.8 32.2*22.7
L355-280 235 105 110 21.1*16.6 32.2*25.4
L355-315 230 105 110 21.1*18.7 32.2*28.6
L400-200 270 100 110 23.7*11.9 36.3*18.2
L400-225 265 100 110 23.7*13.4 36.3*20.5
L400-250 250 100 110 23.7*14.8 36.3*22.7
L400-315 230 100 110 23.7*18.7 36.3*28.6
L400-355 225 100 110 23.7*21.1 36.3*32.2
L450-200 270 105 100 26.7*11.9 40.9*18.2
L450-225 270 105 105 26.7*13.4 40.9*20.5
L450-250 270 105 110 26.7*14.8 40.9*22.7
L450-280 255 105 110 26.7*16.6 40.9*25.4
L450-315 250 105 110 26.7*18.7 40.9*28.6
L450-355 245 105 110 26.7*21.1 40.9*32.2
L450-400 245 105 120 26.7*23.7 40.9*36.3
L500-200 280 98 105 29.7*11.9 45.4*18.2
L500-225 280 98 105 29.7*13.4 45.4*20.5
L500-250 280 98 110 29.7*14.8 45.4*22.7
L500-280 280 98 110 29.7*16.6 45.4*25.4
L500-315 275 98 110 29.7*18.7 45.4*28.6
L500-355 275 98 110 29.7*21.1 45.4*32.2
L500-400 275 98 120 29.7*23.7 45.4*36.3
L500-450 275 98 120 29.7*26.7 45.4*40.9
L560-315 280 105 110 33.2*18.7 50.8*28.6
L560-355 265 105 110 33.2*21.1 50.8*32.2
L560-400 260 105 120 33.2*23.7 50.8*36.3
L560-450 250 105 120 33.2*26.7 50.8*40.9
L560-500 240 105 120 33.2*29.7 50.8*45.4
L630-315 285 110 100 37.4*18.7 57.2*28.6
L630-355 285 110 110 37.4*21.1 57.2*32.2
L630-400 285 110 120 37.4*23.7 57.2*36.3
L630-450 275 110 120 37.4*26.7 57.2*40.9
L630-500 260 110 120 37.4*29.7 57.2*45.4
L630-560 255 110 130 37.4*33.2 57.2*50.8
L710-315 330 120 120 42.1*18.7
L710-355 330 120 120 42.1*21.1
L710-400 314 120 120 42.1*23.7
L710-450 300 120 120 42.1*26.7
L710-500 287 120 120 42.1*29.7
L710-560 277 120 120 42.1*33.2
L710-630 260 120 120 42.1*37.4
L800-315 348 120 120 47.4*18.7
L800-355 335 120 120 47.4*21.1
L800-400 328 120 120 47.4*23.7
L800-450 320 120 120 47.4*26.7
L800-500 305 120 120 47.4*29.7
L800-560 290 120 120 47.4*33.2
L800-630 282 120 120 47.4*37.4
L800-710 268 120 120 47.4*42.1



Product Description

The HDPE Butt Fusion Fittings developed and produced by Puhui has excellent properties of strength and wear resistance.

Puhui HDPE Butt Fusion Fittings are widely used in PE pipe connection

Role of HDPE Butt Fusion Reducer

The HDPE Reducer is mainly used to connect pipes of different diameters and to ensure a smooth connection between large and small-diameter pipes. This type of connection is very common in piping systems, especially when there is a need to change the path of fluid flow or adjust the flow rate. The standards for reducers include both eccentric and concentric types, and the shape of the connected pipe can be bell-shaped or conical, depending on the specific needs and design of the piping system.

In HDPE piping systems, the use of the Butt Fusion Reducer enables seamless connections to be made, ensuring fluid continuity and efficiency in the transfer process. Due to the excellent corrosion resistance and durability of the HDPE material, Butt Fusion Reducer ensures a strong and reliable connection, thus enhancing the performance and safety of the entire piping system.

In addition, Butt Fusion HDPE Reducer’s application is characterized by its ability to adapt to different working pressures and temperature conditions, ensuring stable performance in different environments and meeting the demands of long-term use. This type of connection is not only suitable for new construction projects but also for the renovation and upgrading of old piping systems, providing a flexible and reliable solution for a variety of fluid transfer applications.

Advantages HDPE fittings

Non-toxic, hygienic

PE pipe fittings are non-toxic and odorless. After strict health monitoring, they are green building materials and never produce scale, which can effectively improve water quality.

Corrosion resistance

PE is an inert material that is resistant to various chemical media.

High toughness

The elongation at break of HDPE pipes is generally above 500%. For the uneven settlement of the foundation engineering construction, its adaptability is very strong and the seismic performance is good.

Long service life

The buried PE pipe fittings are used normally for more than 70 years.
