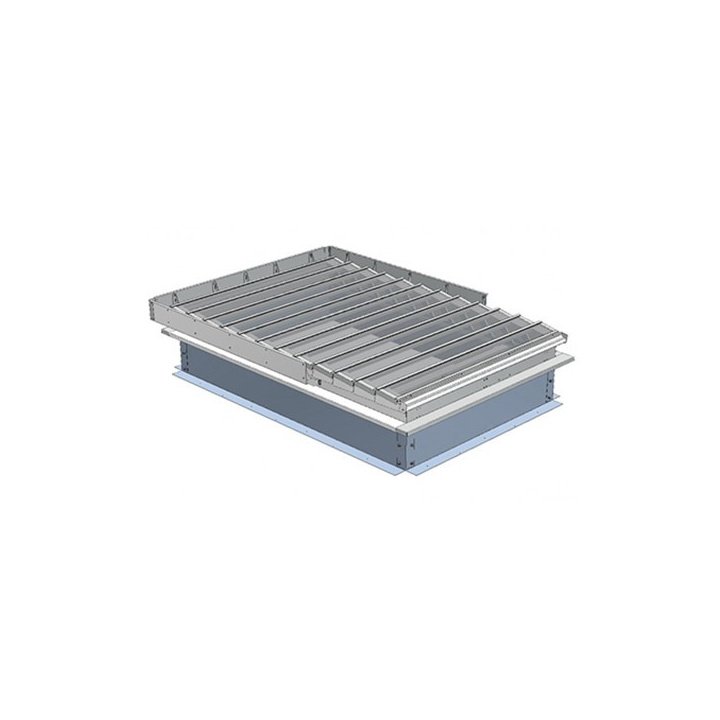

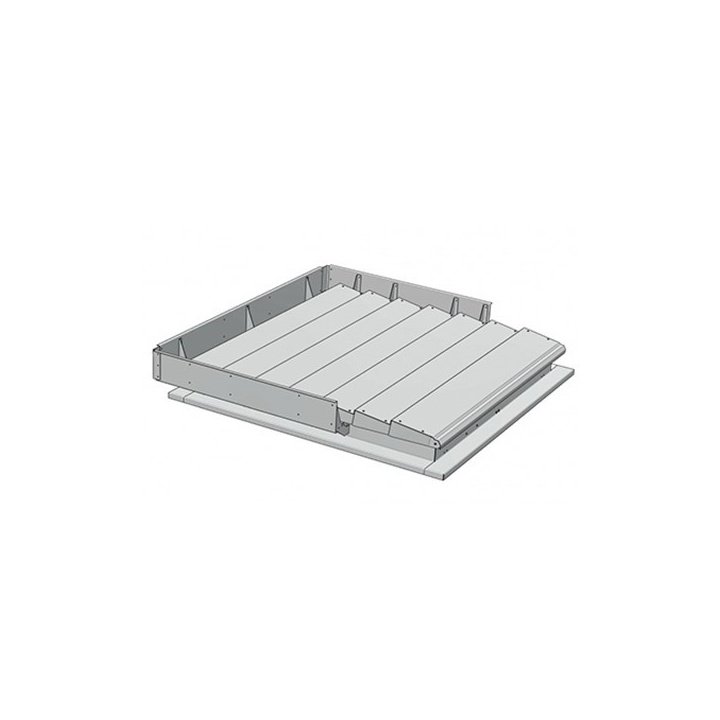

LAM LOUVERED VENTS SET/ASSEMBLY
LAM LOUVERED VENTS SET/ASSEMBLY

LAM LOUVERED VENTS SET/ASSEMBLY

Mercor
$0.00
Tax excluded

mcr LAM LOUVERED VENTS SET/ASSEMBLY

DESCRIPTION

  • mcr LAM louvered smoke vents are assembled
    to roof slope with various angles and facades
  • due to its construction louvered vents are resistant to wind
    and can be installed to roofs and high building facades
  • a wide range of dimensions allows for obtaining the required active
    surface venting or aeration
  • wide scope of sizes: 80 cm x 50 cm ÷ 380 cm x 250 cm
  • bottom part of the base has a circumferential flange of width 100 mm,
    through which the base is fitted to the roof structure
  • upper part of base has shape enabling water runoff
  • RAL palette colour selection for vent elements
  • opening angle of the flap blades 90°
  • classification as per Certificate of Conformity in accordance with EN 12101-2
    (CE Certificate)

This pack contains

Share

mcr LAM LOUVERED VENTS

DESCRIPTION

  • mcr LAM louvered smoke vents are assembled
    to roof slope with various angles and facades
  • due to its construction louvered vents are resistant to wind
    and can be installed to roofs and high building facades
  • a wide range of dimensions allows for obtaining the required active
    surface venting or aeration
  • wide scope of sizes: 80 cm x 50 cm ÷ 380 cm x 250 cm
  • bottom part of the base has a circumferential flange of width 100 mm,
    through which the base is fitted to the roof structure
  • upper part of base has shape enabling water runoff
  • RAL palette colour selection for vent elements
  • opening angle of the flap blades 90°
  • classification as per Certificate of Conformity in accordance with EN 12101-2
    (CE Certificate)

DESIGN
Base

  • height: 15 ÷ 25 cm
  • material: steel, aluminum
  • thermal insulation with mineral wool of 20 mm thickness

Filling

  • multi-chamberpolycarbonate PCA 16 mm  or PCA 25 mm panel
  • non-insulated  aluminum sheets (opaque filling - SO)
  • aluminum sheet isolated with ISO panel of thickness 20 mm (opaque filling - SO+ISO*)
    * insulating material

Blades

  • types: transparent, non-transparent
  • structure: aluminum profiles, multi-chamber polycarbonate
    or aluminum insulated/ noninsulated sheet

Control system

  • smoke exhaust: electric: (24 V-), pneumatic
  • ventilation: electric (230~)
 Smoke exhaust



Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.
 Lighting



Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
 Ventilation



Provides air supply and daily ventilation.
 Additional elements



» rain shield
» thermo switch
» limit switch
» steel plinth for mounting on the roof
 Heat transfer


Product allows to achieve high heat transfer:

Urc ≥ 1,41 W/m²K.
 Application



Wide scope of shapes and sizes enable
installation on warehouses, public
services buildings, shopping malls,
commercial and sport objects.

  • Brand

  • Approvals
    CE
    CPR
    HIGIENIC
  • Heat transfer
    Urc ≥ 1,41 W/m²K.
  • Lighting
    Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
  • Smoke exhaust
    Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.
  • Additional elements
    » limit switch
    » rain shield
    » steel plinth for mounting on the roof
    » thermo switch
  • LAM Filling
    multi-chamberpolycarbonate PCA 16 mm or PCA 25 mm panel
  • LAM Blades structure
    aluminum insulated
    aluminum profiles
    multi-chamber polycarbonate
    noninsulated sheet
  • Filling
    aluminum sheet isolated with ISO panel of thickness 20 mm (opaque filling - SO+ISO*) * insulating material
    multi-chamberpolycarbonate PCA 16 mm
    multi-chamberpolycarbonate PCA 25 mm panel
    non-insulated aluminum sheets (opaque filling - SO)
  • DESIGN Base material
    steel
    aluminum
  • DESIGN Base insulation
    thermal insulation with mineral wool of 20 mm thickness
