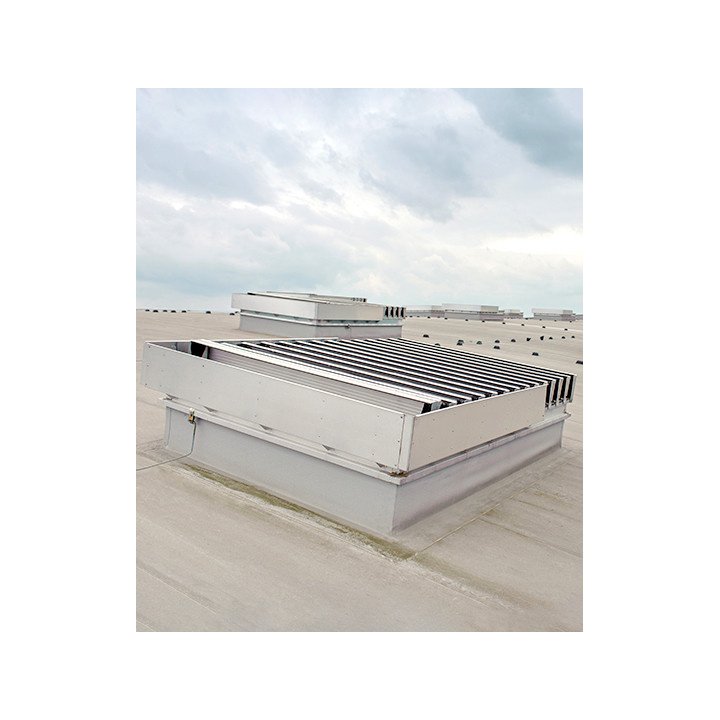

mcr LAM LOUVERED VENTS

Name: mcr LAM LOUVERED VENTS
Brand: Mercor
SKU: 245
Availability: BackOrder

Mercor

$0.00

Tax excluded

mcr LAM LOUVERED VENTS

DESCRIPTION

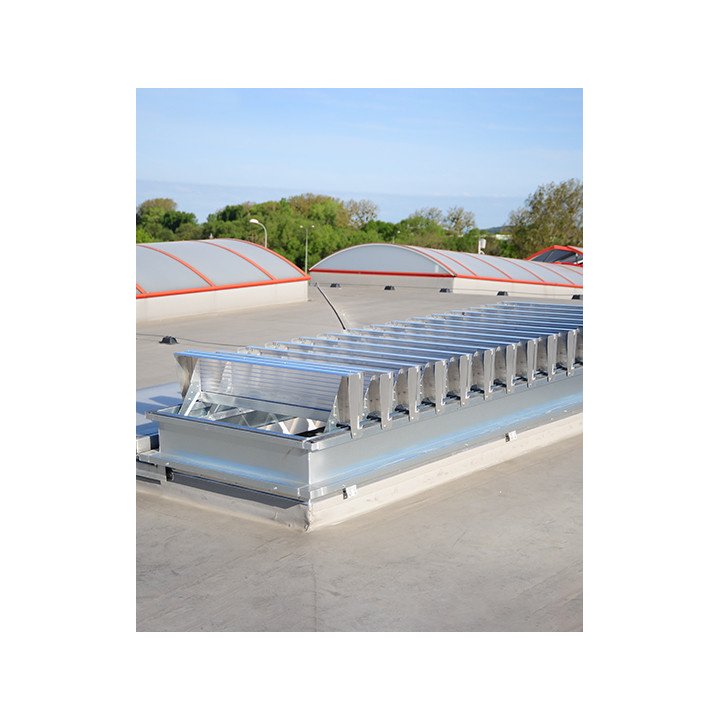

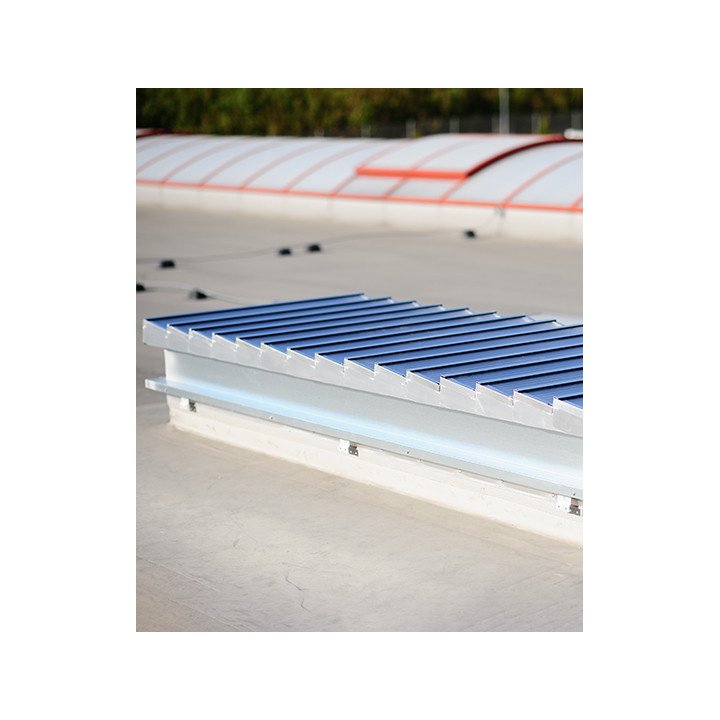

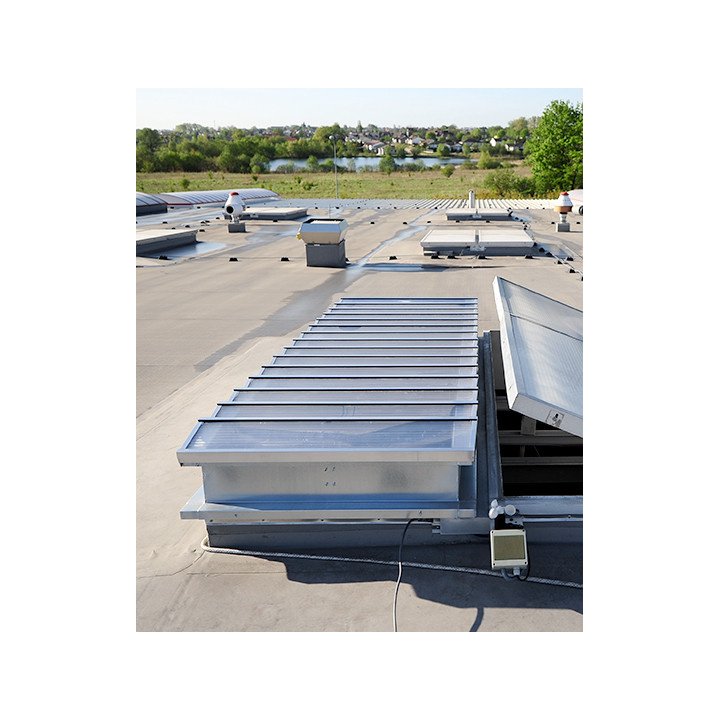

mcr LAM louvered smoke vents are assembled
to roof slope with various angles and facades
due to its construction louvered vents are resistant to wind

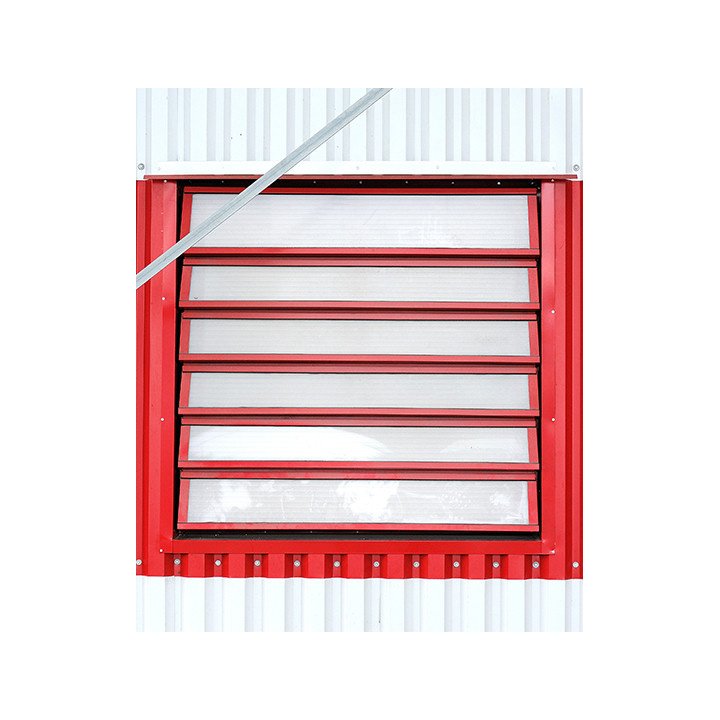

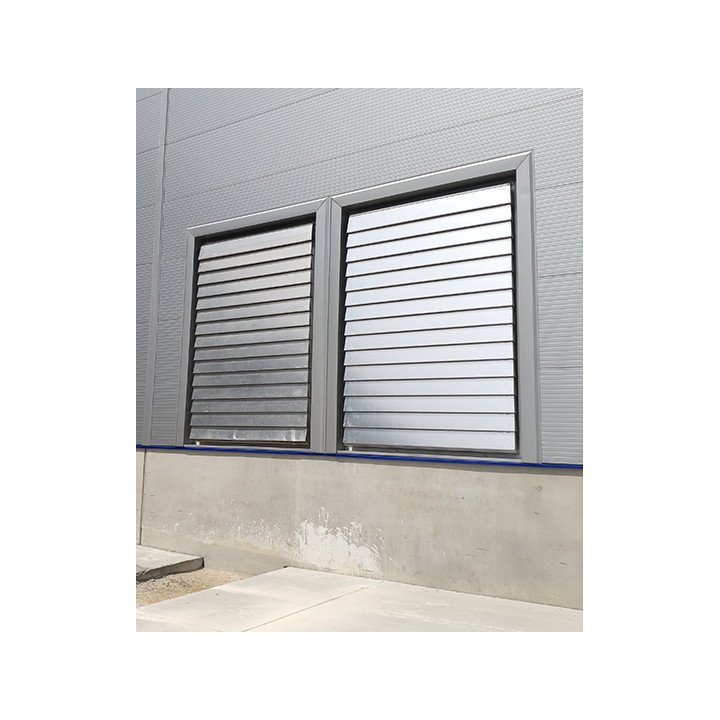

and can be installed to roofs and high building facades
a wide range of dimensions allows for obtaining the required active
surface venting or aeration
wide scope of sizes: 80 cm x 50 cm ÷ 380 cm x 250 cm
bottom part of the base has a circumferential flange of width 100 mm,
through which the base is fitted to the roof structure
upper part of base has shape enabling water runoff
RAL palette colour selection for vent elements

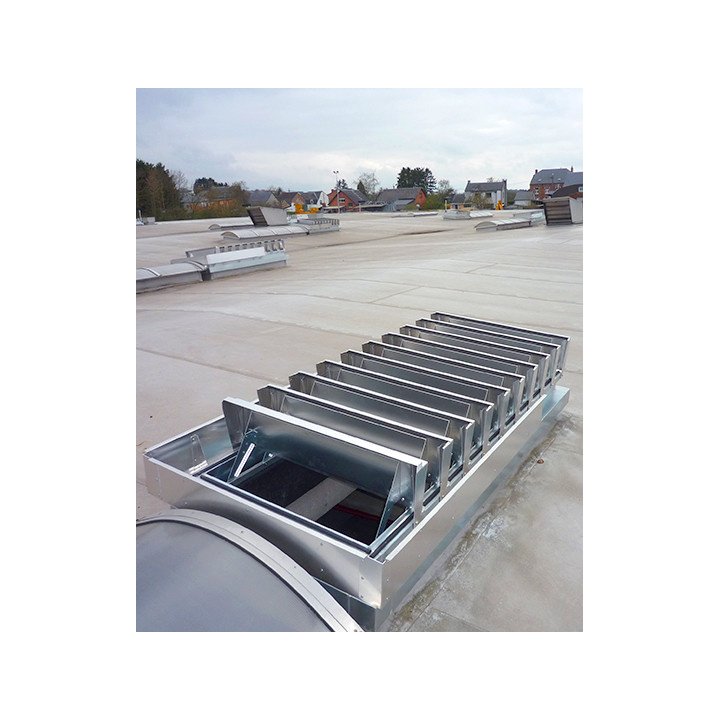

opening angle of the flap blades 90°
classification as per Certificate of Conformity in accordance with EN 12101-2
(CE Certificate)

LAM LOUVERED VENTS SIZES

80 x 50

380 x 250

mcr LAM LOUVERED VENTS

DESCRIPTION

mcr LAM louvered smoke vents are assembled
to roof slope with various angles and facades
due to its construction louvered vents are resistant to wind
and can be installed to roofs and high building facades
a wide range of dimensions allows for obtaining the required active
surface venting or aeration
wide scope of sizes: 80 cm x 50 cm ÷ 380 cm x 250 cm
bottom part of the base has a circumferential flange of width 100 mm,
through which the base is fitted to the roof structure
upper part of base has shape enabling water runoff
RAL palette colour selection for vent elements
opening angle of the flap blades 90°
classification as per Certificate of Conformity in accordance with EN 12101-2
(CE Certificate)

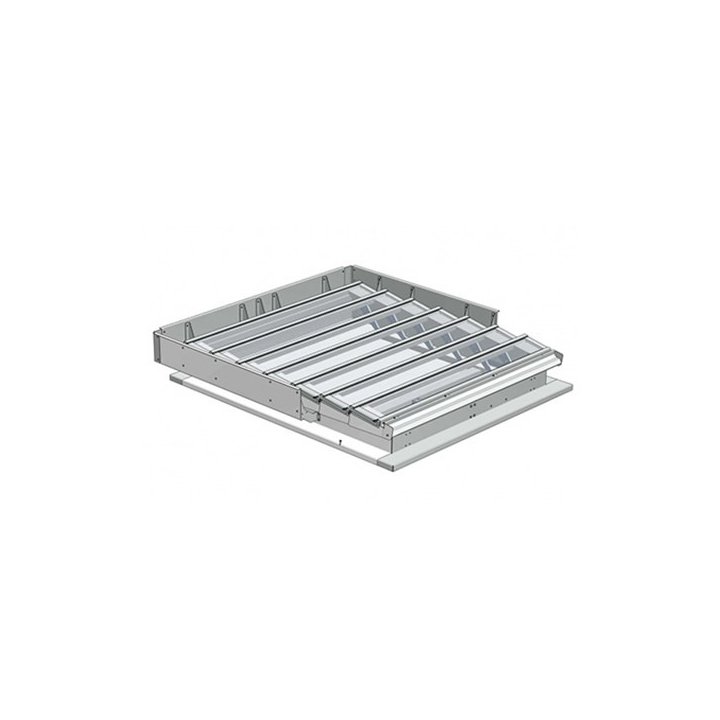

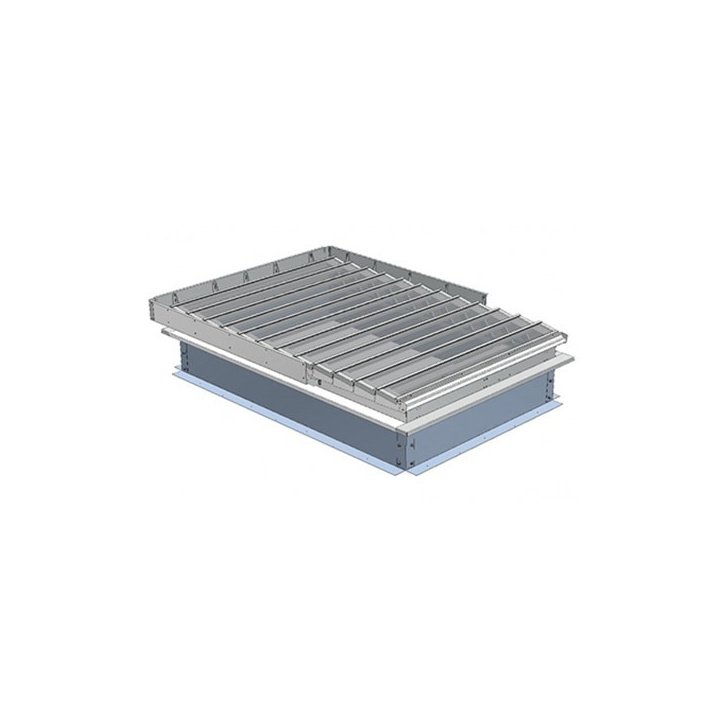

DESIGN
Base

height: 15 ÷ 25 cm
material: steel, aluminum
thermal insulation with mineral wool of 20 mm thickness

Filling

multi-chamberpolycarbonate PCA 16 mm or PCA 25 mm panel
non-insulated aluminum sheets (opaque filling - SO)
aluminum sheet isolated with ISO panel of thickness 20 mm (opaque filling - SO+ISO*)
* insulating material

Blades

types: transparent, non-transparent
structure: aluminum profiles, multi-chamber polycarbonate
or aluminum insulated/ noninsulated sheet

Control system

smoke exhaust: electric: (24 V-), pneumatic
ventilation: electric (230~)

Smoke exhaust

Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.

Lighting

Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.

Ventilation

Provides air supply and daily ventilation.

Additional elements

» rain shield
» thermo switch
» limit switch
» steel plinth for mounting on the roof

Heat transfer

Product allows to achieve high heat transfer:

Urc ≥ 1,41 W/m²K.

Application

Wide scope of shapes and sizes enable
installation on warehouses, public
services buildings, shopping malls,
commercial and sport objects.

Brand

Approvals

CE
CPR
HIGIENIC
Heat transfer

Urc ≥ 1,41 W/m²K.
Lighting

Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
Smoke exhaust

Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.
Additional elements

» limit switch
» rain shield
» steel plinth for mounting on the roof
» thermo switch
LAM Filling

multi-chamberpolycarbonate PCA 16 mm or PCA 25 mm panel
LAM Blades structure

aluminum insulated
aluminum profiles
multi-chamber polycarbonate
noninsulated sheet
Filling

aluminum sheet isolated with ISO panel of thickness 20 mm (opaque filling - SO+ISO*) * insulating material
multi-chamberpolycarbonate PCA 16 mm
multi-chamberpolycarbonate PCA 25 mm panel
non-insulated aluminum sheets (opaque filling - SO)
DESIGN Base material

steel
aluminum
DESIGN Base insulation

thermal insulation with mineral wool of 20 mm thickness
