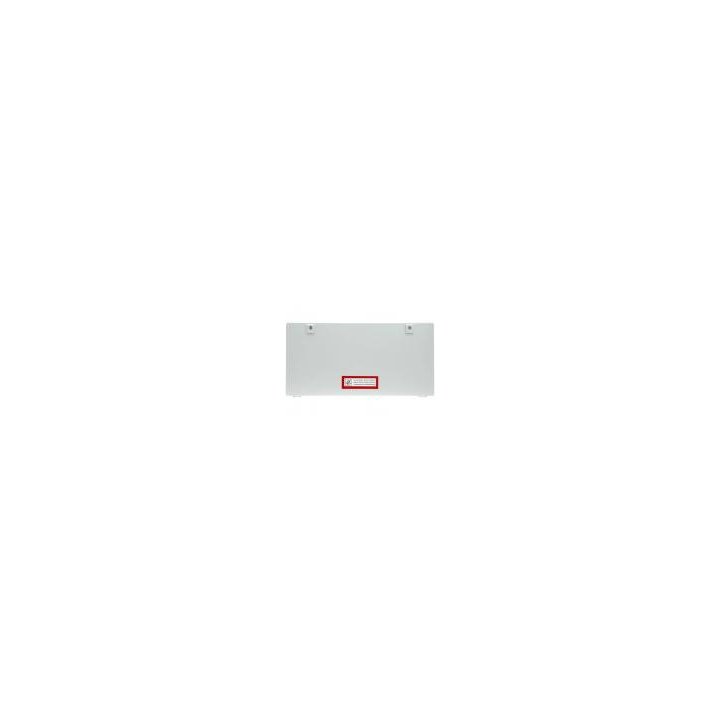

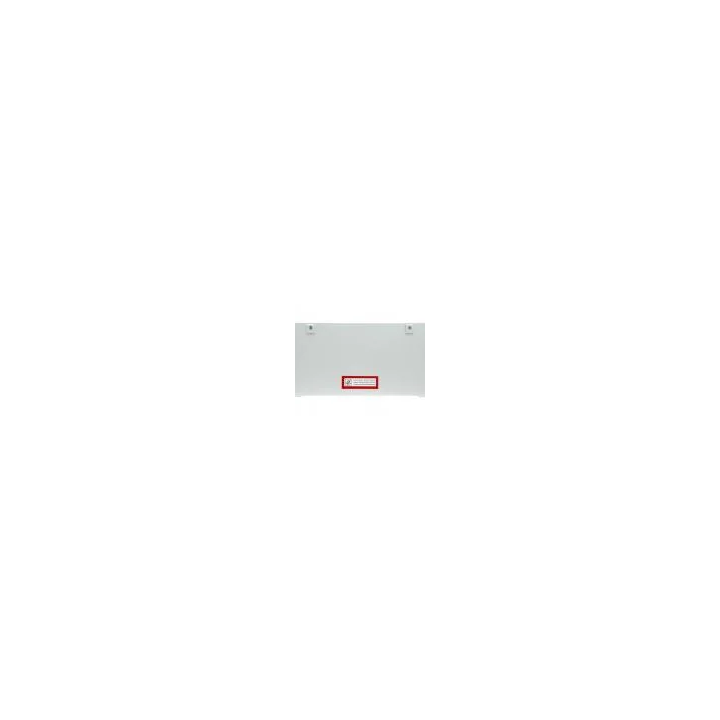

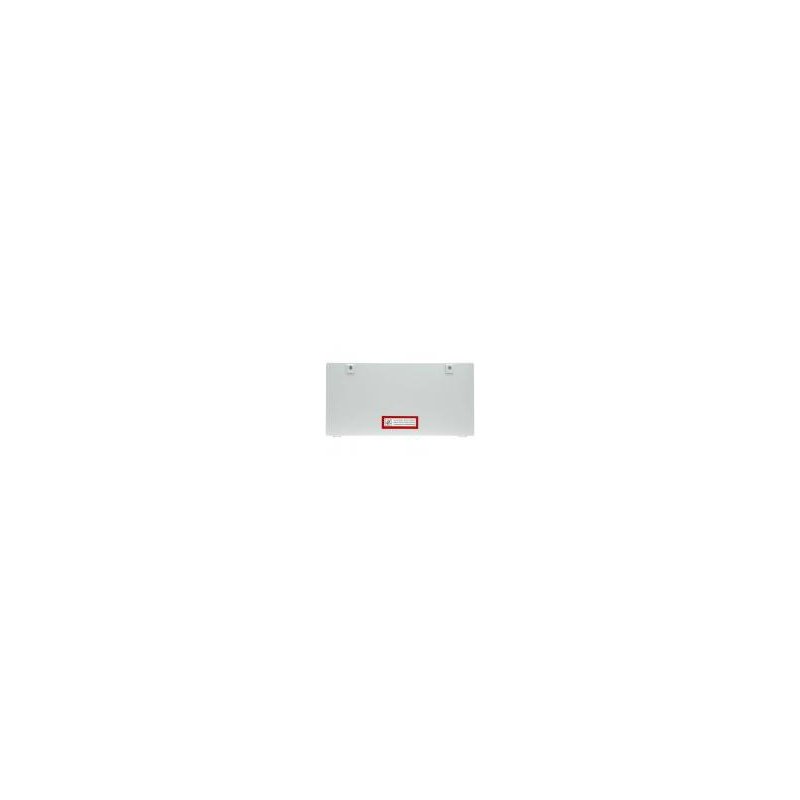

The RWD 2 Control Centre

The RWD 2 Control Centre is designed for setting up a decentralised SHEV system. For this purpose, up to 60 Control Centres can be organised in a monitored bus system with up to nine SHE groups. The decentralised arrangement allows the Control Centres to be placed close to the windows or flaps. As a result, the power cables between the Control Centre and the actuator are significantly shorter, which considerably reduces the costs for the system cabling.

To ensure that the system can still be operated centrally, the SD 2 operating unit is required as an accessory. It is connected either directly to any Control Centre or to a junction box. Via a four-line display and a keypad, it shows the status of the bus system and enables the system to be set and operated.

The RWD 2 is available in two versions: depending on the number and type of actuators, it can provide a total output current of 10 A or 20 A. Select the desired output current in the following drop-down menu.

Please note the approved accumulators for use in our RWA control units and controls.

Accessories

  • SD-2a Service Display: Service display for RWD 2 with 4-line LCD
  • BA-L2 (2.0 m): Bus connection cable from SD2 with 2.0 m cable length
  • BA-T: Bus termination

Specifications

  • Mains voltage supply 230 VAC
  • Output current 10 A or 20 A
  • SHEV groups 2
  • Ventilation groups 2
  • Signal lines 4
  • Standby time 72 h in case of mains failure
  • Environmental class 1/III -5 °C to +40 °C
  • Enclosure protection class IP30
  • Dimensions 480 mm x 310 mm x 180 mm

Variants

  • RWD 2-10a
  • Decentralized smoke extraction control unit with 10A/24VDC, 2x 7 Ah/12 V
  • RWD 2-20a
  • Decentralized smoke extraction control unit with 20A/24VDC, 2x 12 Ah/12 V

  • Option PK Potential-free contacts (PK) for forwarding alarm and/or fault messages
  • Option WRM Internal wind and rain control for connecting an anemometer and/or rain sensor
  • Option WTM Control of external warning devices in the event of an alarm or fault
  • Option PK-SA Potential-free contacts for forwarding the position indicator
  • Module MA Convenient connection of a normally closed or normally open contact
