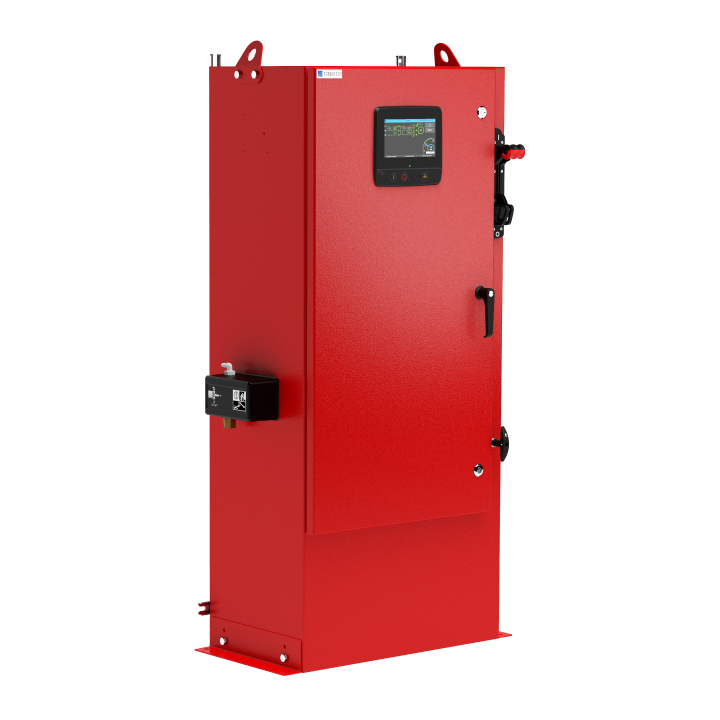

GPx Series – Electric Fire Pump Controllers, Nema II

GPx Series – Electric Fire Pump Controllers, Nema II

Information

Electric Fire Pump Controllers

• Designed for use with electric motor driven fire pumps.
• Available in a wide variety of full and reduced voltage starting methods.
• Manufactured in accordance with the NFPA 20 standard, UL listed and FM Approved.
• ViZiTouch 7 inch Color Touch Screen Operator Interface (HMI technology)
• Models range from 208 to 600 volt, 5 to 500 horsepower, 50 / 60 Hz

Electric FIre Pump Controllers With Automatic Transfer Switch

• Required if normal utility power is not reliable
• Housed in a barriered compartment or in a separate enclosure attached to the fire pump controller
• Listed and Approved for fire pump service
• Equipped with a transfer switch TEST pushbutton

Certifications

Standard Features • ViZiTouch 2.1 operator interface • Pressure and event recorder • Voltage and amperage display • Single operator for both isolating switch and circuit breaker • Surge arrestor • Lifting lugs • Run test push button • Available with automatic power transfer switch • Emergency start handle • Start and stop pushbuttons • Locked rotor protector • Phase reversal indication • Remote start / deluge valve start provision • Pressure transducer and run test solenoid valve externally mounted • Gland plate • Alarm buzzer • Alarm contacts for remote indication • Available with full voltage and reduced  voltage starting Starting Methods • Model GPA - Across-the-line • Model GPY - Wye-Delta Open • Model GPP - Partwinding • Model GPR - Autotransformer • Model GPW - Wye-Delta Closed • Model GPS - Soft Start Soft Stop
