UL Kitchen Fire Suppression System SET/ 7.5L

After actuation & discharge of wet chemical, if water is supplied through the same nozzles, it will aid the generated foam blanket to stay for a long time without burning. Water cools down the surrounding hot surface temperature. It also cools down hot oil by bringing its temperature below auto ignition point. This will reduce the risk of re-ignition. Water supply can be provided in the following two ways.

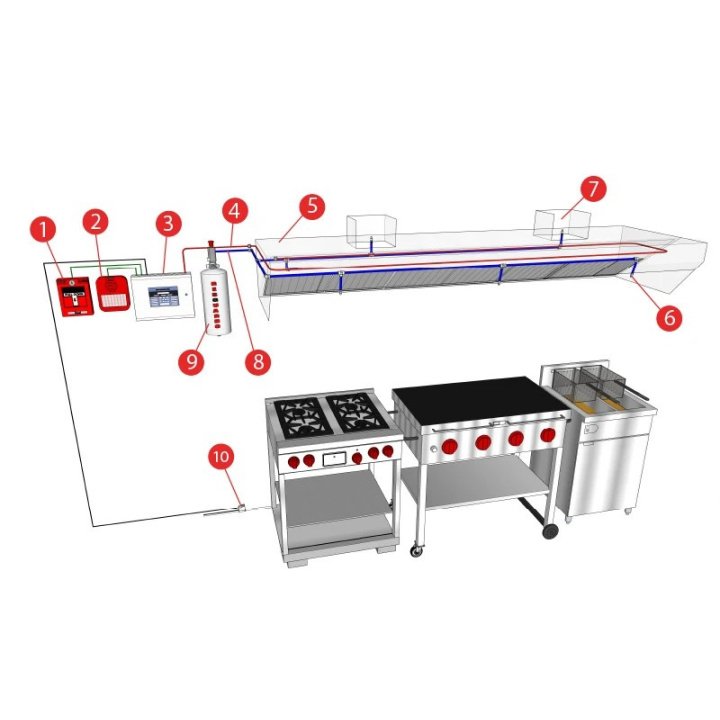

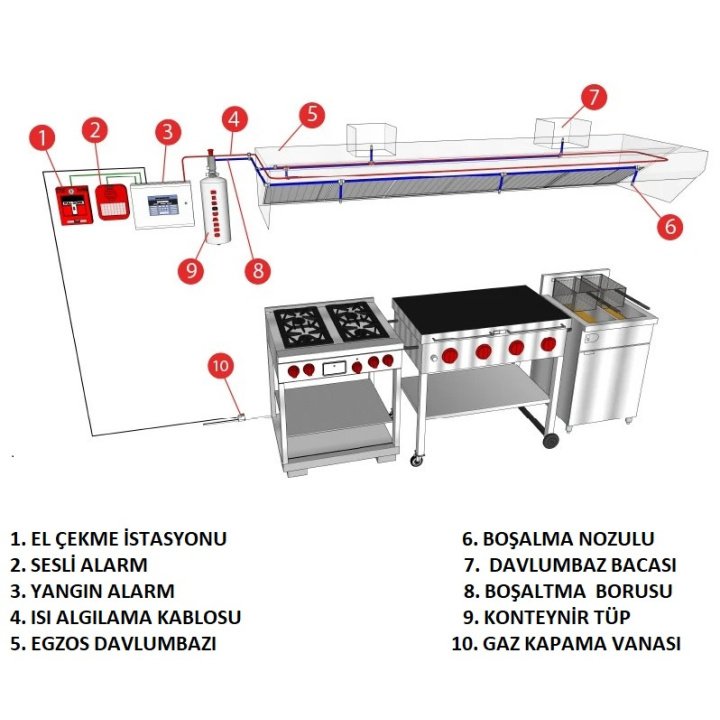

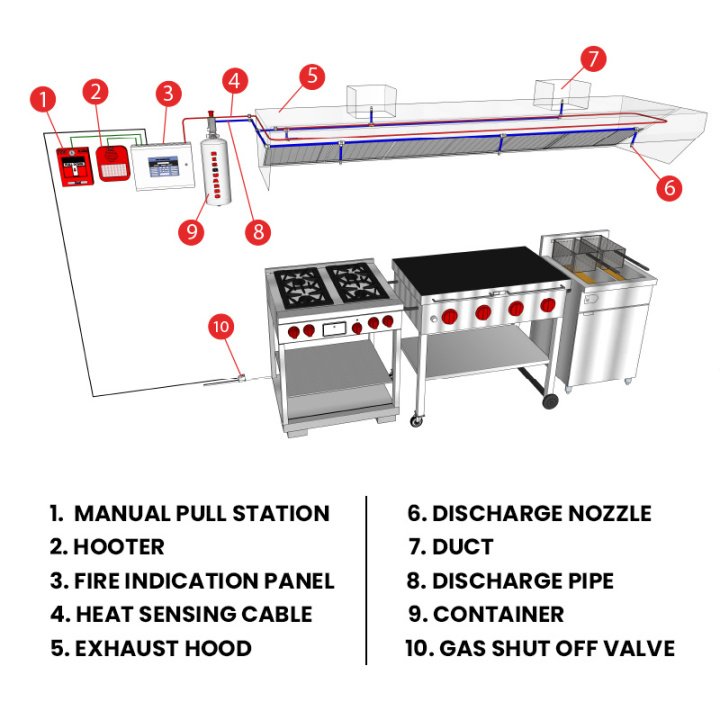

UL Kitchen Fire Suppression System SET/ 7.5L

1 MANUAL PULL STATION                6. DISCHARGE NOZZLE

2 ALARM SOUNDER                        7.  DAVLUMBAZ BACASI

3 FIRE ALARM                                8. DISCHARGE PIPE

4. HEAT DETECTION CABLE             9. KONTEYNİR  CYLINDER

5. EXHAUST DUCTI                        10. GAS SHUTOFF VALVE

FEATURES AND SPECIFICATIONS

·         fully automated kitchen fire suppression system

·         Stainless steel container with wet chemical agents

·         Saponification of hot oils by wet chemical agents

·         Wet chemical agents also cool the surrounding areas and prevent re-ignition

·         Linear heat sensing cable (150°C - 180°C)

·         Automatic Actuation Valve

·         Provision for Manual Activation of the system

·         Steel tubing with a spray nozzle

·         Available in capacities of 7.5L, 12.5L, 17.5L, 22.5L, and 27.5L

APPROVAL

·         UL Approved

·         Water Associated Wet Chemical Solution

·         Certificate Number: UL-US-2239015-0

·         Wet Chemical Solution Extinguisher System

·         Certificate Number: UL-US-2239014-0
