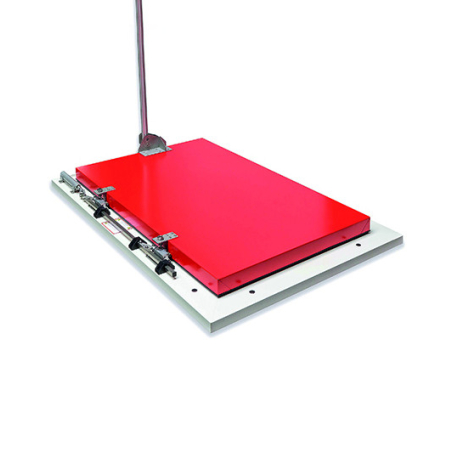

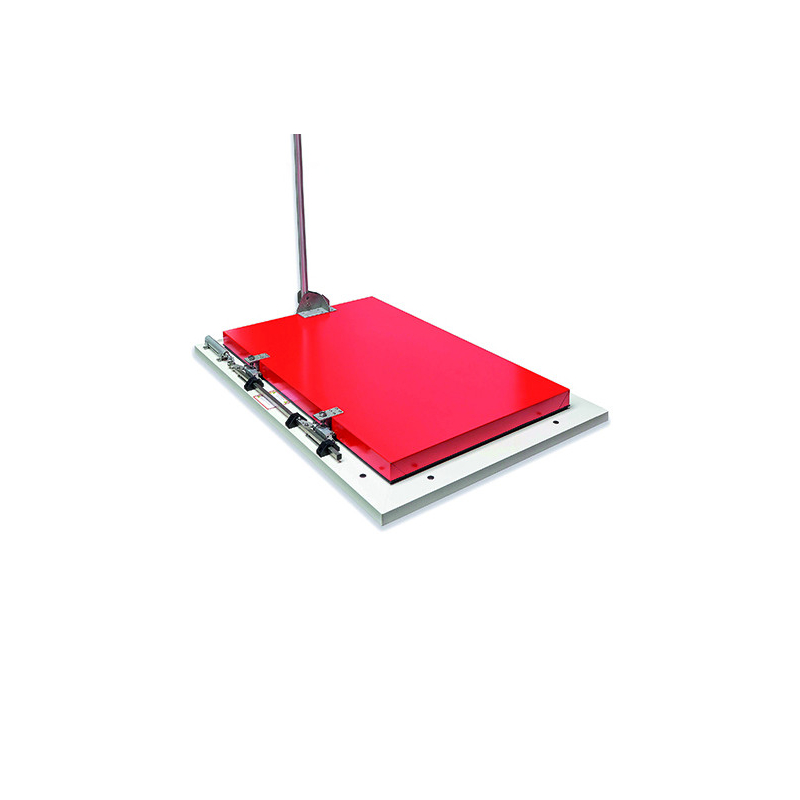

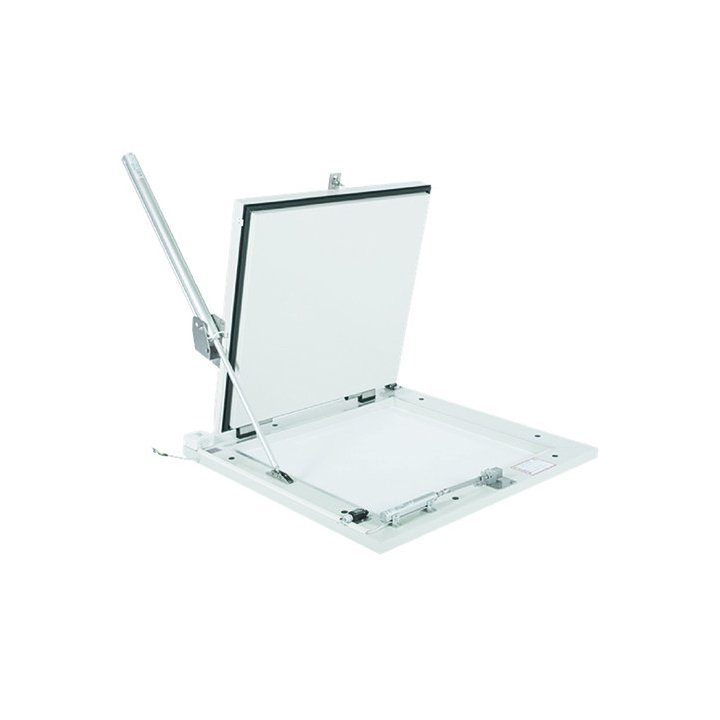

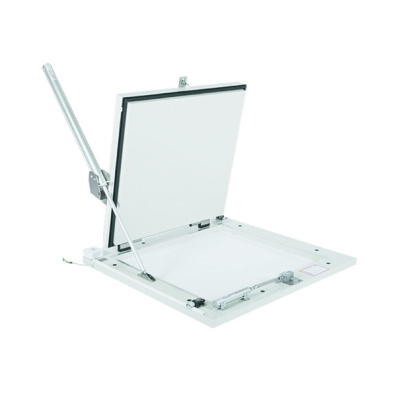

mcr COOL THERM SMOKE EXTRACTION FLAPS

Name: mcr COOL THERM SMOKE EXTRACTION FLAPS
Brand: Mercor
SKU: 333
Availability: BackOrder

$0.00

Tax excluded

CHARACTERISTIC

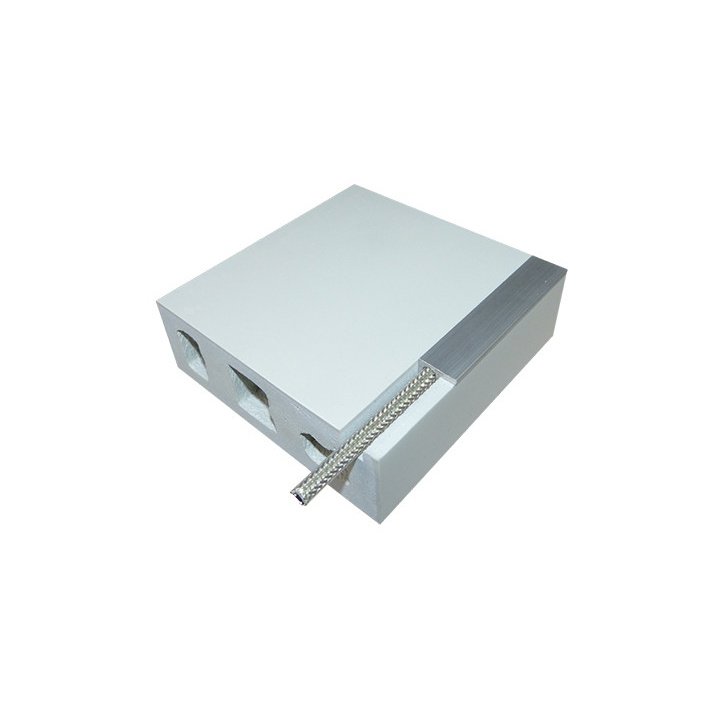

high thermal insulation of the product, thanks to the Thermotec perimeter frame
complete lack of thermal bridges
wide range of flap dimensions: min. 800 x 800 mm / max. 1280 x 2500 mm *
* other dimensions available on request
Specially designed for installation in rooms
with temperature scales such as:
– 4°C in the case of cold rooms
– from –28°C to 4°C in the case of freezer rooms

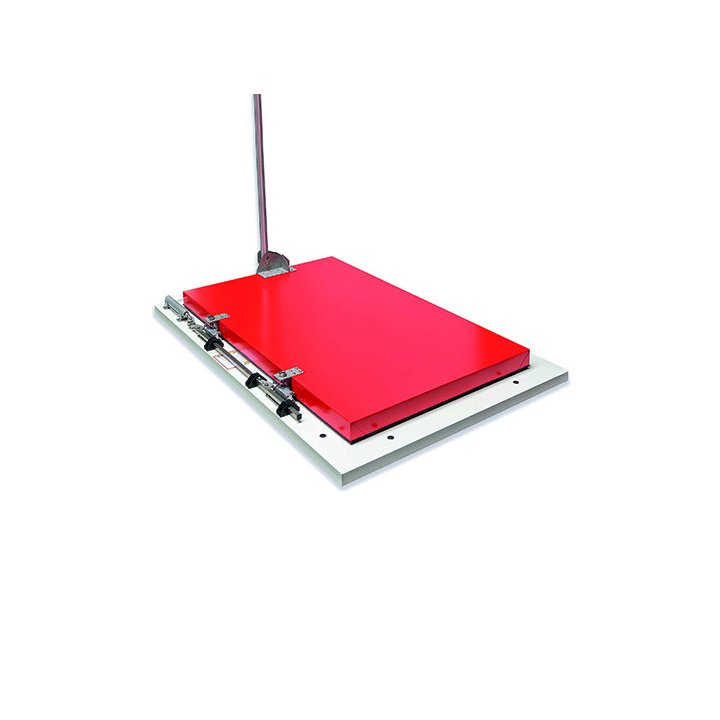

selection of colors from the RAL palette for the external finish of the hatch leaf
Various internal finishes of the flap leaf available in stainless steel
and galvanized coated sheet metal
maximum tightness
product certified in accordance with PN EN 12101-2, CE marked

CONSTRUCTION
Material

flap leaf: Stainless steel or aluminum/steel sheet 0.63 mm – 0.8 mm; galvanized, covered with plastic
core insulation of the flap leaf: Polyurethane B2 according to DIN 4102-1, no thermal bridges with an insulation thickness of 120 mm

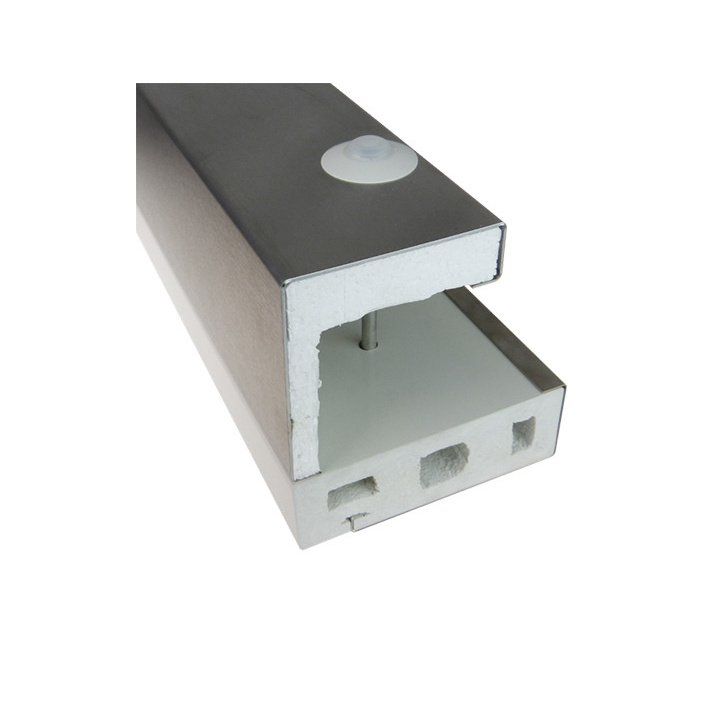

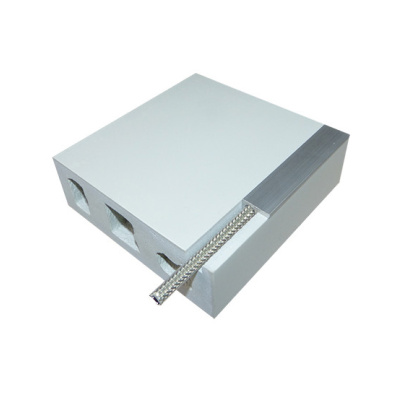

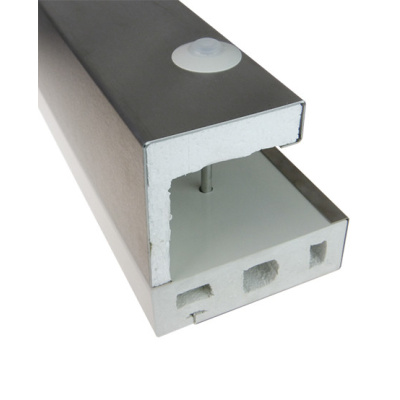

frame: PVC, Thermotec frame 150 mm × 50 mm
