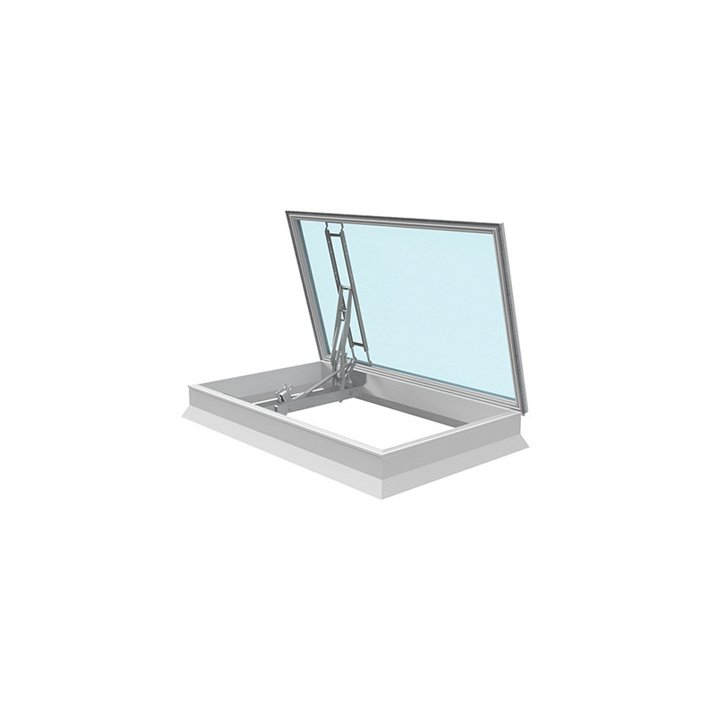

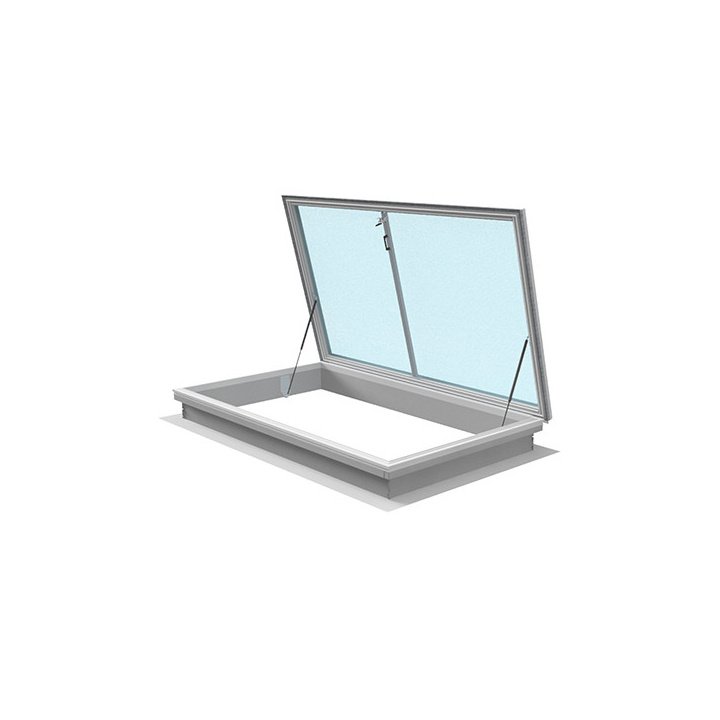

mcr ULTRA THERM SMOKE VENTS WITH ROOF ACCESS FUNCTION

Name: mcr ULTRA THERM SMOKE VENTS WITH ROOF ACCESS FUNCTION
Brand: Mercor
SKU: 220
Availability: BackOrder

$0.00

Tax excluded

SMOKE VENTS TYPE

DESCRIPTION

high thermal insulation
no thermal bridges
various shapes and base materials
wide scope of vents sizes:
–  Type C (square): 100 x 100 cm ÷ 115 x 115 cm*
–  Type E (rectangular): 80 x 120 cm ÷ 200 x 250 cm*
–  Type NG-A (skew base): 90 x 120 ÷ 200 x 250 cm*
partial or complete product delivery
RAL palette colour selection for steel and aluminum bases
aesthetic design
product certified according to PN EN 12101-2, CE marked

(*) The selection of vents with a hatch function should
be consulted with the sales department*

DESIGN
Base

type: straight, skew
height: standard 30cm (skew), 30 cm - 50 cm (straight);
25 cm - 70 cm (additional option)
material: PVC, steel, aluminium
steel or aluminum base prepared for insulation of 50 mm thickness
possible to instal on existing plinth

Filling

Control system

Approvals

CE
CPR
EPD/ITM
HIGIENIC
Heat transfer

Urc ≥ 0,8 W/m²K
Ventilation

Provides air supply and daily ventilation.
Lighting

Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
Smoke exhaust

Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.
Additional elements

» limit switch
