Sway-Brace Fitting UTT13
search
  • Sway-Brace Fitting UTT13

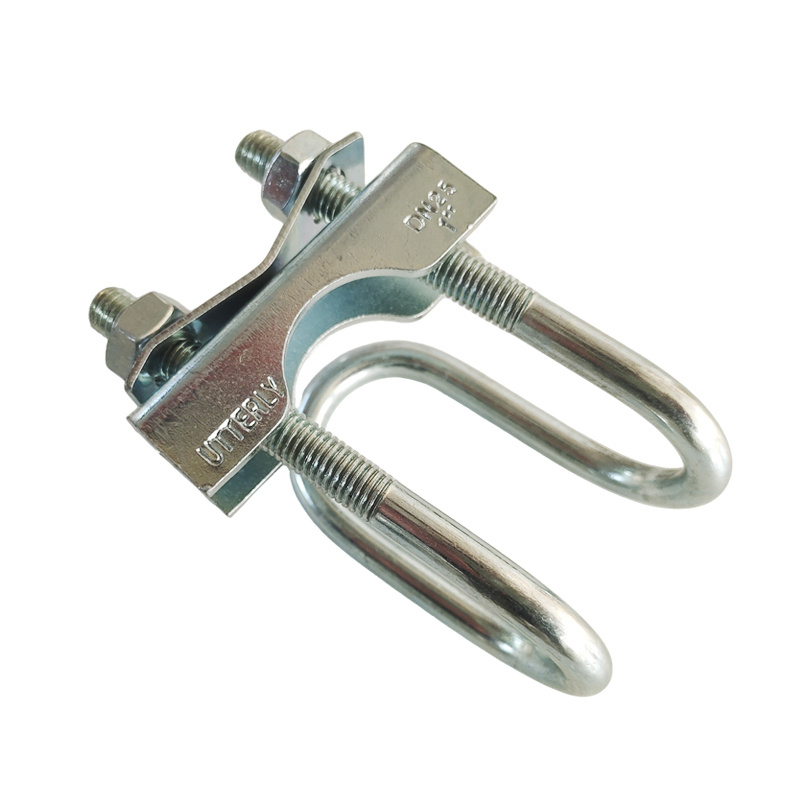

Sway-Brace Fitting UTT13



Pipe Size [Inch (Mm)]: 1(25) UL

Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer's installation instructions.

Type: Sprinkler Pipe Sch 10,Sch 40,GB/T 3091,JIS G3454

Size: Pipe size 1" (25)thru 8 " (200)

Material: Carbon steel

Finish: Electro-galvanized

Approvals: UL:pipe size 1" (25)thru 8" (200); FM:pipe size 2" (50)thru 8" (200)

Data sheet

UL Maximum Design Load Pipe Size [Inch (Mm)]
1(25)
1¼(32)
1½(40)
2(50) 655 (2,314)
2½(65) 2,015 (8,963)
3(80)
4(100)
5(125)
6(150)
8(219) 3,000** (13,344)
FM Maximum Design Load Pipe Size [Inch (Mm)]
2(50) 3,200 (14,234)
2½(65) 4,250** (18,904)
3(80) 3,500 (15,560)
4(100)
6(150)
8(200)
